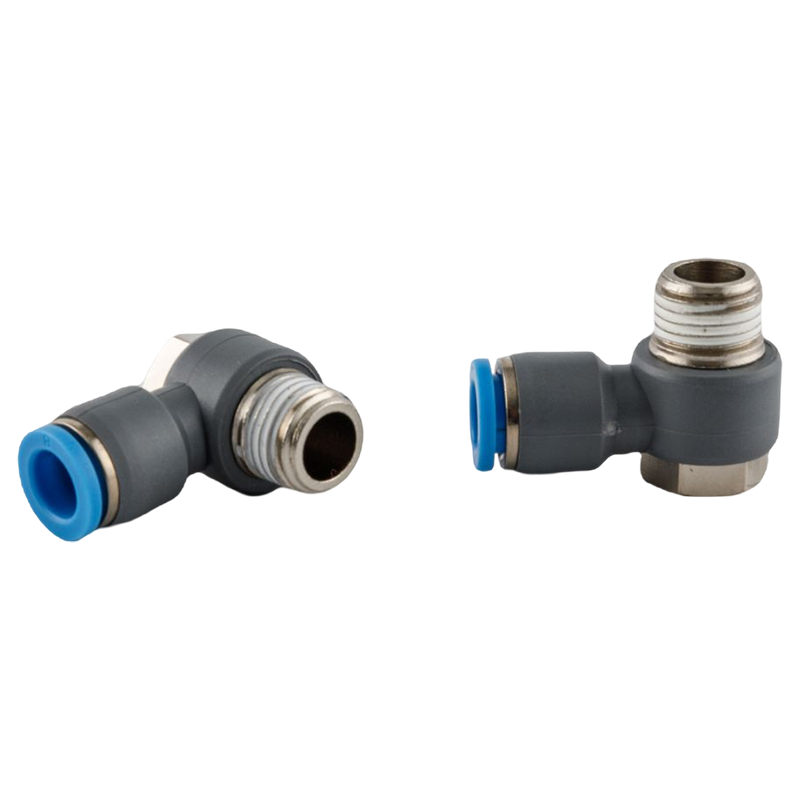

Universal Female Elbow 90° pneumatic push-in fitting (two ways)

Home / Products / Pneumatic push-in fitting / Universal Female Elbow 90° pneumatic push-in fitting (two ways)
Universal Female Elbow 90° pneumatic push-in fitting (two ways)
  • Universal Female Elbow 90° pneumatic push-in fitting (two ways)

Universal Female Elbow 90° pneumatic push-in fitting (two ways)

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • The spring design can accept multiple quick insertion and removal
  • High hardness plastics can be used for a long time without embrittlement
  • Copper parts are plated with chromium to prevent rust and oxidation
  • Comes with threaded sealant for quick installation
  • The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
  • working pressure range in 0-1.0 Mpa （0 - 145 Psi)
PREV：Pneumatic push-in OD reducer (two ways)
NEXT：Male Elbow 90° pneumatic push-in fitting (two ways)
  • Description

  • Product Description

    PH series, Eblow type 2-way connector allows for changing the flow direction of the air path at the right angle pneumatic pathway. Hexagon nuts at the top help users quickly install. Typically designed for hose sizes ranging from 4 to 14mm, with thread options including M5 to 1/2" PT, G, and NPT.

    Universal Female Elbow Type Pneumatic Push-In Fitting - the ideal solution for versatile and efficient pneumatic applications. Designed with precision and functionality in mind, this PH series elbow-type 2-way connector allows you to seamlessly change the flow direction of your pneumatic pathway at a perfect right angle.

    Crafted for user convenience, this fitting features hexagon nuts at the top, ensuring swift and hassle-free installation, so you can get your system up and running in no time.

    Our Universal Female Elbow Type Pneumatic Push-In Fitting is engineered to accommodate a wide range of hose sizes, spanning from 4mm to 14mm, making it incredibly versatile for various applications. Additionally, it offers a range of thread options, including M5, 1/8" PT, 1/4" PT, 3/8" PT, 1/2" PT, G, and NPT, allowing you to seamlessly integrate it into your existing pneumatic setup.

    Reliability, ease of use, and adaptability - our Universal Female Elbow Type Pneumatic Push-In Fitting is your go-to choice for optimizing your pneumatic systems. Whether you're in manufacturing, automation, or any industry where precise airflow control is crucial, this fitting is designed to meet your needs and exceed your expectations. Upgrade your pneumatic systems with confidence and precision using our top-notch elbow-type connector.




    Product Parameters

    MODEL D R A B H E X C
    GPH04-M5 4 M5 3.8 18 8 20.5 9.9 9.9
    GPH04-01 4 PT1/8 7.5 24.3 10 23.4 9.9 9.9
    GPH06-M5 6 M5 3.8 18 8 21.8 11.9 11.9
    GPH06-01 6 PT1/8 7.5 24.3 10 23 11.9 11.9
    GPH06-02 6 PT1/4 9.5 26.5 14 25 11.9 11.9
    GPH06-03 6 PT3/8 10.5 32.5 19 27 11.9 11.9
    GPH08-01 8 PT1/8 7.5 24.3 10 25.6 13.9 13.9
    GPH08-02 8 PT1/4 9.5 26.5 14 26.6 13.9 13.9
    GPH08-03 8 P3/8 10.5 32.5 19 29.6 13.9 13.9
    GPH08-04 8 PT1/2 13.5 38.2 24 32.6 13.9 13.9
    GPH10-02 10 PT1/4 9.5 26.5 14 32 16.9 16.9
    GPH10-03 10 PT3/8 10.5 32.5 19 32.6 16.9 16.9
    GPH10-04 10 PT1/2 13.5 38.2 24 35.5 16.9 16.9
    GPH12-03 12 PT3/8 10.5 32.5 19 35.5 19.9 19.9
    GPH12-04 12 PT1/2 13.5 38.2 24 36 19.9 19.9
