Product Description

Polyamide body is clean and not affect on medium
easy mounting of bottom thread holes
Withstand up to 100℃ for hot water with silicon seals
Germany Zapp imported valve core material
IP65 protection or weir connecting type is optional
Compact in size and narrower in width

PREV：Direct acting 2/2 ways stainless steel acid and alkali resistance normally closed solenoid valve
NEXT：No next article

Description

Product Description

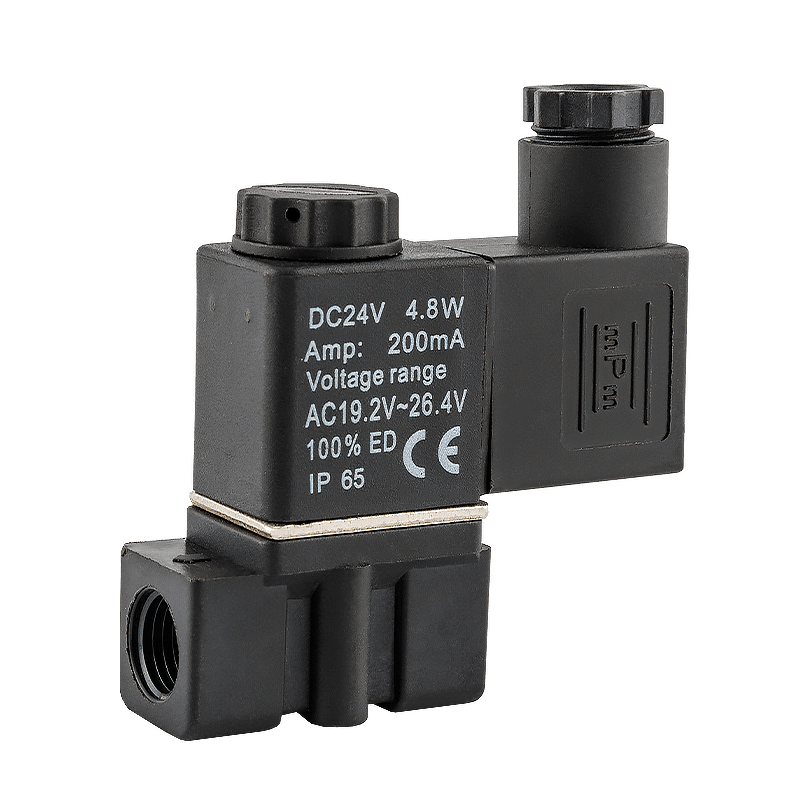

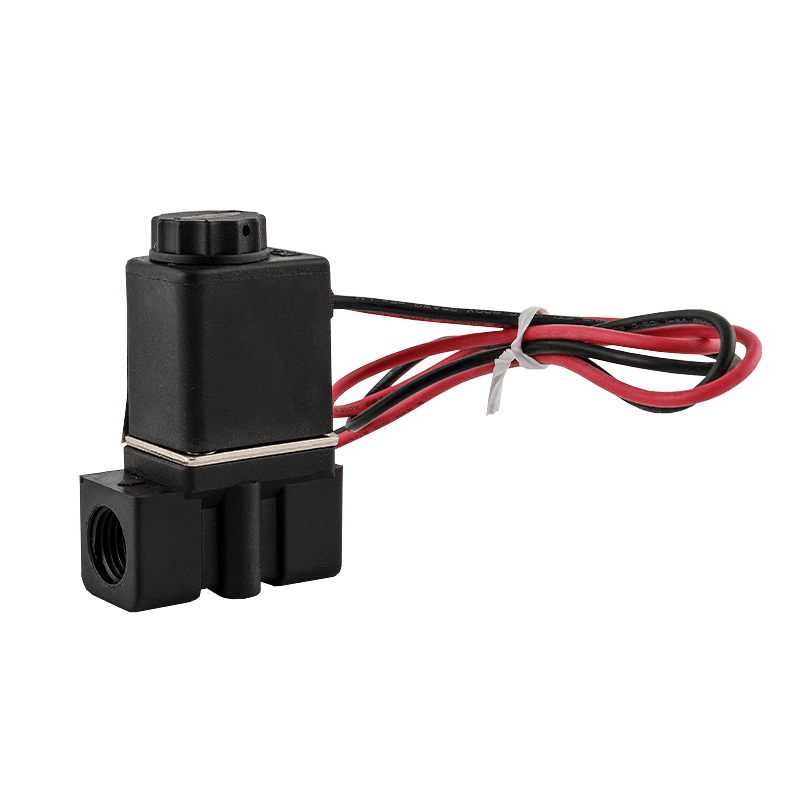

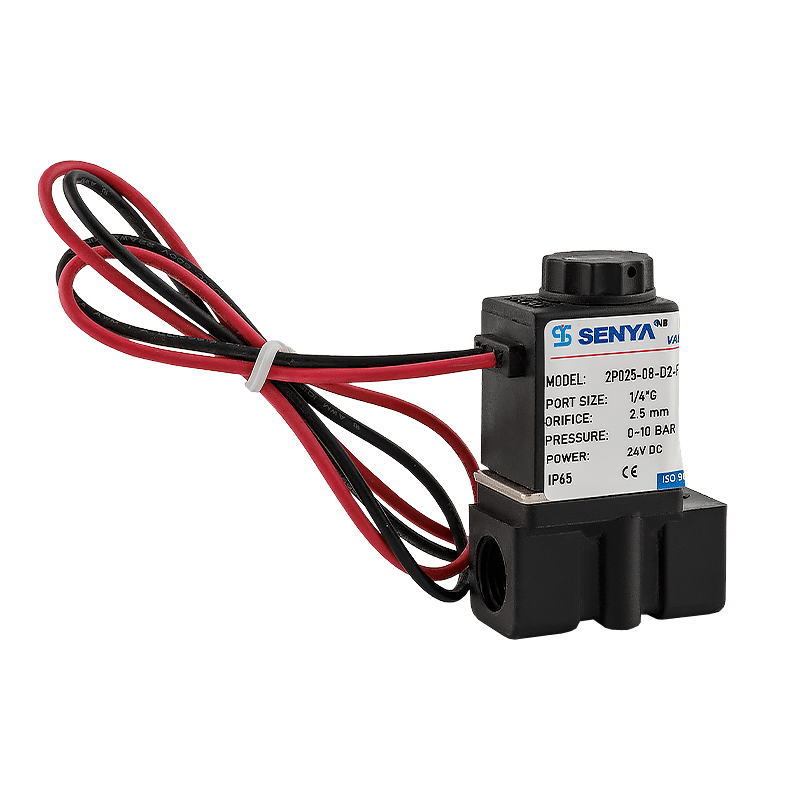

2P series 2/2 ways plastic solenoid valve is a direct-acting compact valve. The valve guide tube is an easy plug-in design to reduce the structure volume without sacrificing performance. Various thread standards and seal options can fulfill several applications. Two types of weir connecting can offer flexible installation. SENYA can provide different connectors to meet the PLC, PCB, wire plug-in, and other link scenarios.

Product Parameters

Category	2/2 ways
Way of action	direct acting
Series	2P
Body Material	Plastic / Nylon
Way to control	solenoid valve
Pressure resistance	0-0.7 Mpa
Sealing material	NBR or VITON
Temperature	-5 ~ 80 ℃ or (-5 ~120℃）
Port Range	1/8“-1/4”
Normally open normally closed	N.C.
Wiring	Flying leads/DIN connector
Protection level	IP65
way to install	bottom mounting
Recommended installation method	horizontally or vertically
thread option	BSP, NPT thread

Industrial
Water dispenser

The water dispenser needs extremely high cleanliness. We have customized exclusive silica gel seals, which can not affect the quality of drinking water for a long time, and can have very stable quality in high temperature environment
