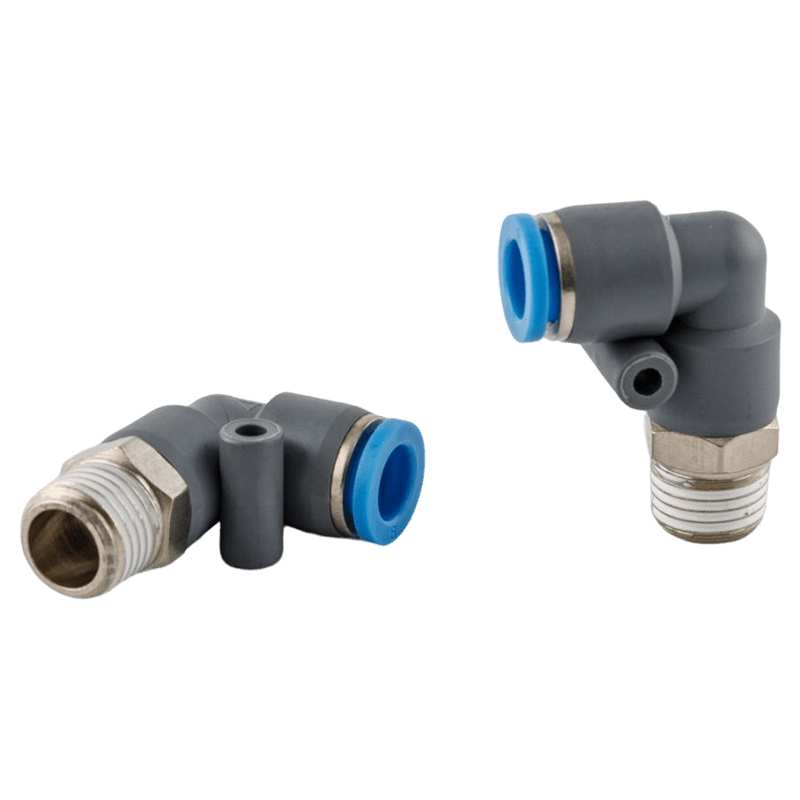

Male Elbow 90° pneumatic push-in fitting (two ways)

Home / Products / Pneumatic push-in fitting / Male Elbow 90° pneumatic push-in fitting (two ways)
Male Elbow 90° pneumatic push-in fitting (two ways)
  • Male Elbow 90° pneumatic push-in fitting (two ways)

Male Elbow 90° pneumatic push-in fitting (two ways)

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • The spring design can accept multiple quick insertion and removal
  • High hardness plastics can be used for a long time without embrittlement
  • Copper parts are plated with chromium to prevent rust and oxidation
  • Comes with threaded sealant for quick installation
  • The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
  • working pressure range in 0-1.0 Mpa （0 - 145 Psi)
PREV：Universal Female Elbow 90° pneumatic push-in fitting (two ways)
NEXT：Branch Y type pneumatic push-in fitting（three ways)
  • Description

  • Product Description

    Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.



    Product Parameters

    MODEL D R A B C S X
    GPL04-M5 4 M5 4 22.4 18.2 10 9.9
    PL04-M6 4 M6 4.5 22.9 18.2 10 9.9
    GPL04-01 4 PT1/8 7.5 25.4 18.2 10 9.9
    GPL04-02 4 PT1/4 9.5 28 18.2 14 9.9
    GPL06-M5 6 M5 4 23.6 19 12 11.9
    GPL06-M6 6 M6 4.5 24 19 12 11.9
    GPL06-01 6 PT1/8 7.5 26.5 19 12 11.9
    GPL06-02 6 PT1/4 9.5 28.6 19 14 11.9
    GPL06-03 6 PT3/8 10.5 30 19 17 11.9
    GPL06-04 6 PT1/2 13.5 32.5 19 21 11.9
    PL08-01 8 PT1/8 7.5 30 23 14 13.9
    GPL08-02 8 PT1/4 9.5 32 23 14 13.9
    GPL08-03 8 PT3/8 10.5 33 23 17 13.9
    GPL08-04 8 PT1/2 13.5 36.5 23 21 13.9
    GPL10-01 10 PT1/8 7.5 34.5 27.4 17 16.9
    GPL10-02 10 PT1/4 9.5 36.5 27.4 17 16.9
    GPL10-03 10 PT3/8 10.5 37.5 27.4 17 16.9
    GPL10-04 10 PT1/2 13.5 40.8 27.4 21 16.9
    GPL12-01 12 PT1/8 7.5 36.3 29.3 21 19.9
    GPL12-02 12 PT1/4 9.5 38.5 29.3 21 19.9
    GPL12-03 12 PT3/8 10.5 39.5 29.3 21 19.9
    GPL12-04 12 PT1/2 13.5 42.5 29.3 21 19.9
    GPL14-03 14 PT3/8 10.5 40.5 30.5 22 21.8
    GPL14-04 14 PT1/2 13.5 43.5 30.5 22 21.8
    GPL16-03 16 PT3/8 10.5 44 32.5 24 23.8
    GPL16-04 16 PT1/2 13.5 47 32.5 24 23.8
