Speed Control Elbow type pneumatic push-in fitting（two ways)

Home / Products / Pneumatic push-in fitting / Speed Control Elbow type pneumatic push-in fitting（two ways)
Speed Control Elbow type pneumatic push-in fitting（two ways)
  • Speed Control Elbow type pneumatic push-in fitting（two ways)
  • Speed Control Elbow type pneumatic push-in fitting（two ways)

Speed Control Elbow type pneumatic push-in fitting（two ways)

+86 0574 88951829 Contact Us Download Pdf
Product Description
  • The spring design can accept multiple quick insertion and removal
  • High hardness plastics can be used for a long time without embrittlement
  • Copper parts are plated with chromium to prevent rust and oxidation
  • Comes with threaded sealant for quick installation
  • The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
  • working pressure range in 0-1.0 Mpa （0 - 145 Psi)
PREV：Different Diameter Tee D1＜D2 pneumatic push-in fitting (three ways)
NEXT：Quick insertion and removal of pneumatic connection plastic connectors
  • Description

  • Product Description

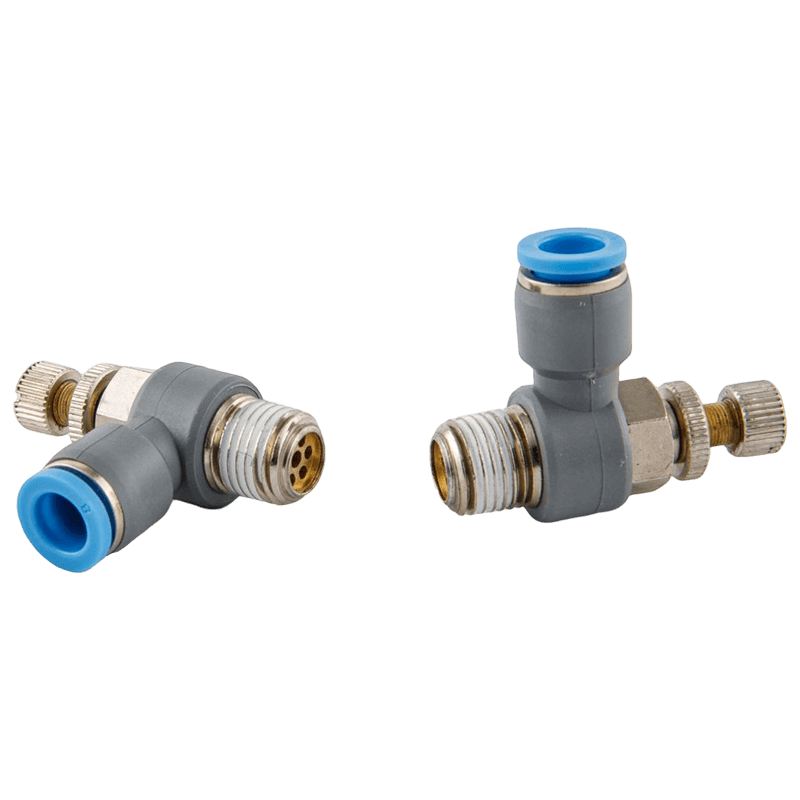

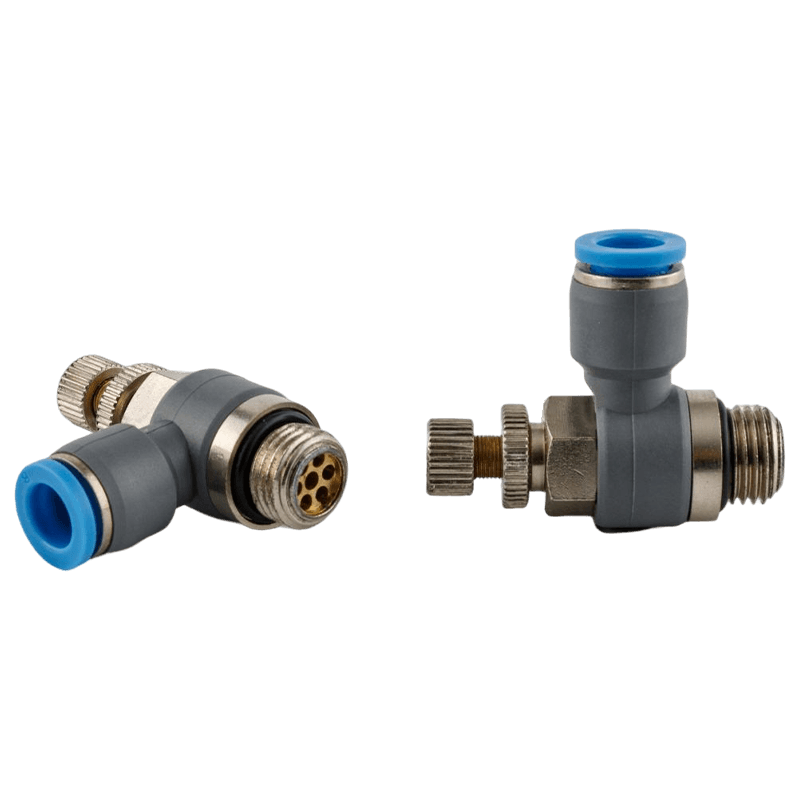

    The SC series Speed Control Elbow type pneumatic push-in fitting. Can control the speed of air flow into the pneumatic components. That can easily control pneumatic product acts speed by controlling the air speed through the top knob

    The SC Series Speed Control Elbow Type Pneumatic Push-In Fitting is a versatile and essential component for precision control of airflow into pneumatic systems. Designed to streamline your pneumatic applications, this fitting empowers you to easily manage the speed at which pneumatic products operate, all with the simple twist of a knob.

    Precision Air Flow Control: The SC Series fitting is engineered to provide precise control over the rate at which air flows into your pneumatic components. Whether you need to slow down or speed up an operation, this fitting offers the fine-tuned adjustment required for optimal performance.

    Two-Way Design: This fitting offers seamless bi-directional control, allowing you to regulate airflow both into and out of your pneumatic system. This versatility is especially valuable when dealing with complex pneumatic applications.

    User-Friendly Operation: The top knob design of the SC Series Speed Control Elbow makes it incredibly user-friendly. With a simple twist, you can adjust the airspeed to suit your specific needs, ensuring that your pneumatic components perform exactly as desired.

    Durable Construction: Crafted from high-quality materials, the SC Series fitting is built to withstand the rigors of industrial environments. Its robust construction ensures longevity and reliability in various applications.

    Wide Range of Applications: Whether you are controlling the speed of a conveyor belt, regulating the movement of robotic arms, or managing any pneumatic process, the SC Series Speed Control Elbow Type Pneumatic Push-In Fitting is the ideal solution.




    Product Parameters

    MODEL D R A B S X L
    min max
    GPSC04-M5 4 M5 3.8 20.5 8 9.9 27.5 30.5
    GPSC04-01 4 PT1/8 7.5 23.4 10 9.9 41 45.5
    GPSC04-02 4 PT1/4 10.5 25.3 14 9.9 44 51.3
    GPSC06-M5 6 M5 3.8 21.8 8 11.9 27.5 30.5
    GPSC06-01 6 PT1/8 7.5 23 10 11.9 41 45.5
    GPSC06-02 6 PT1/4 10.5 24.8 14 11.9 44 51.3
    GPSC06-03 6 PT3/8 12 27 19 11.9 46.7 53.3
    GPSC06-04 6 PT1/2 14 29.5 24 11.9 51.8 58.8
    GPSC08-01 8 PT1/8 7.5 25.7 10 13.9 41 45.5
    GPSC08-02 8 PT1/4 10.5 28.8 14 13.9 44 51.3
    GPSC08-03 8 PT3/8 12 29.7 19 13.9 46.7 53.5
    GPSC08-04 8 PT1/2 14 32.1 24 13.9 51.8 58.8
    GPSC10-02 10 PT1/4 10.5 31.7 14 16.9 44 51.3
    GPSC10-03 10 PT3/8 12 32.6 19 16.9 46.7 53.5
    GPSC10-04 10 PT1/2 14 35.2 24 16.9 51.8 58.8
    GPSC12-02 12 PT1/4 10.5 33.7 14 19.9 44 51.3
    GPSC12-03 12 PT3/8 12 34.5 19 19.9 46.7 53.3
    GPSC12-04 12 PT1/2 14 36 24 19.9 51.8 58.8


    MODEL D R A B S X L
    min max
    GPSC5/32-01N 5/32 NPT1/8 7.5 23.4 7/16 9.9 41 45.5
    GPSC5/32-02N 5/32 NPT1/4 10.5 25.3 9/16 9.9 44 51.3
    GPSC1/4-01N 1/4 NPT1/8 7.5 23 1/2 11.9 41 45.5
    GPSC1/4-02N 1/4 NPT1/4 10.5 24.8 9/16 11.9 44 51.3
    GPSC1/4-03N 1/4 NPT3/8 12 27 11/16 11.9 46.7 53.3
    GPSC1/4-04N 1/4 NPT1/2 14 29.5 7/8 11.9 51.8 58.8
    GPSC5/16-01N 5/16 NPT1/8 7.5 25.7 9/16 13.9 41 45.5
    GPSC5/16-02N 5/16 NPT1/4 10.5 28.8 9/16 13.9 44 51.3
    GPSC5/16-03N 5/16 NPT3/8 12 29.7 11/16 13.9 46.7 53.5
    GPSC5/16-04N 5/16 NPT1/2 14 32.1 7/8 13.9 51.8 58.8
    GPSC3/8-02N 3/8 NPT1/4 10.5 31.7 11/16 16.9 44 51.3
    GPSC3/8-03N 3/8 NPT3/8 12 32.6 11/16 16.9 46.7 53.5
    GPSC3/8-04N 3/8 NPT1/2 14 35.2 7/8 16.9 51.8 58.8
    GPSC1/2-02N 1/2 NPT1/4 10.5 33.7 7/8 19.9 44 51.3
    GPSC1/2-03N 1/2 NPT3/8 12 34.5 7/8 19.9 46.7 53.3
    GPSC1/2-04N 1/2 NPT1/2 14 36 7/8 19.9 51.8 58.8
