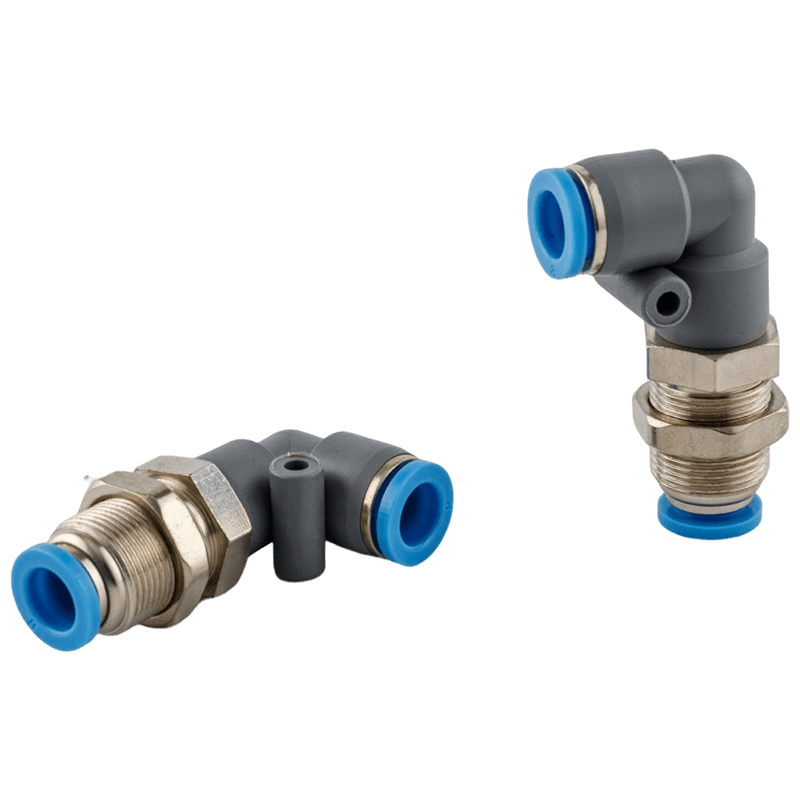

Quick insertion and removal of pneumatic connection plastic connectors

+86 0574 88951829 Contact Us Download Pdf

Product Description

The spring design can accept multiple quick insertion and removal
High hardness plastics can be used for a long time without embrittlement
Copper parts are plated with chromium to prevent rust and oxidation
Comes with threaded sealant for quick installation
The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
working pressure range in 0-1.0 Mpa （0 - 145 Psi)

PREV：Speed Control Elbow type pneumatic push-in fitting（two ways)
NEXT：Different Diameter Tee D1>D2 pneumatic push-in fitting (three ways)

Description

Product Description

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.

Product Parameters

MODEL	L	A	B	C	φD	φd	M	H	X
GPLM04	33.3	18.2	14.9	18.2	4	-	M12	14	9.9
GPLM06	36.5	19	15.5	19	6	3.3	M14	17	11.9
GPLM08	44.5	23	17.8	23	8	3.3	M16	20	13.9
GPLM10	50	27.4	20.5	27.4	10	4.3	M20	24	16.9
GPLM12	53.5	29.3	22.9	29.3	12	4.3	M22	26	19.9
GPLM16	62.6	32.5	24	32.5	16	4.3	M27	29	23.8
