Economical plastic actuator pneumatic angle seat valve

Home / Products / 2/2 ways solenoid valve / Economical plastic actuator pneumatic angle seat valve

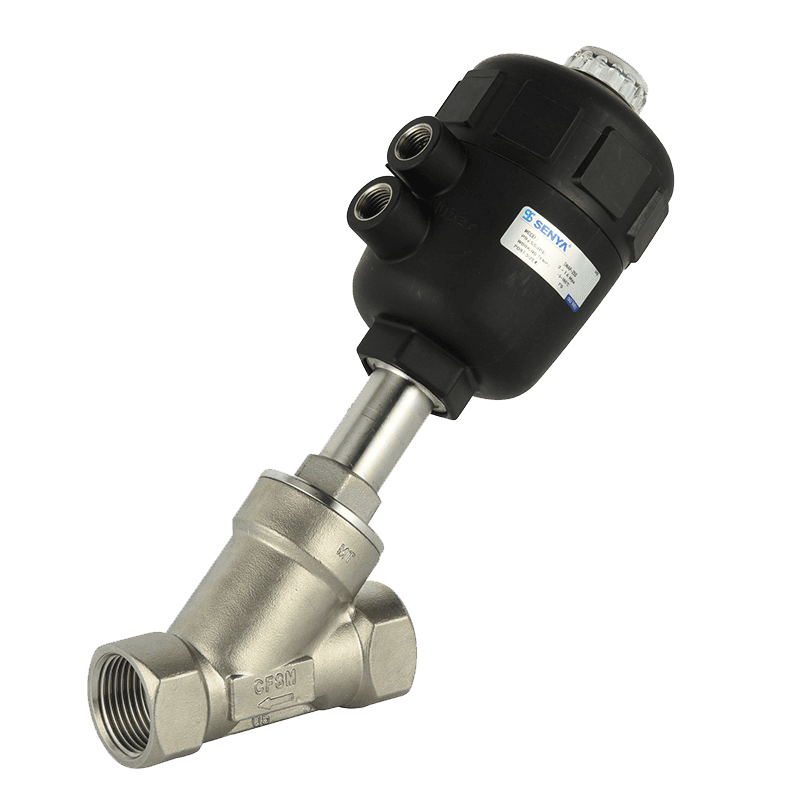

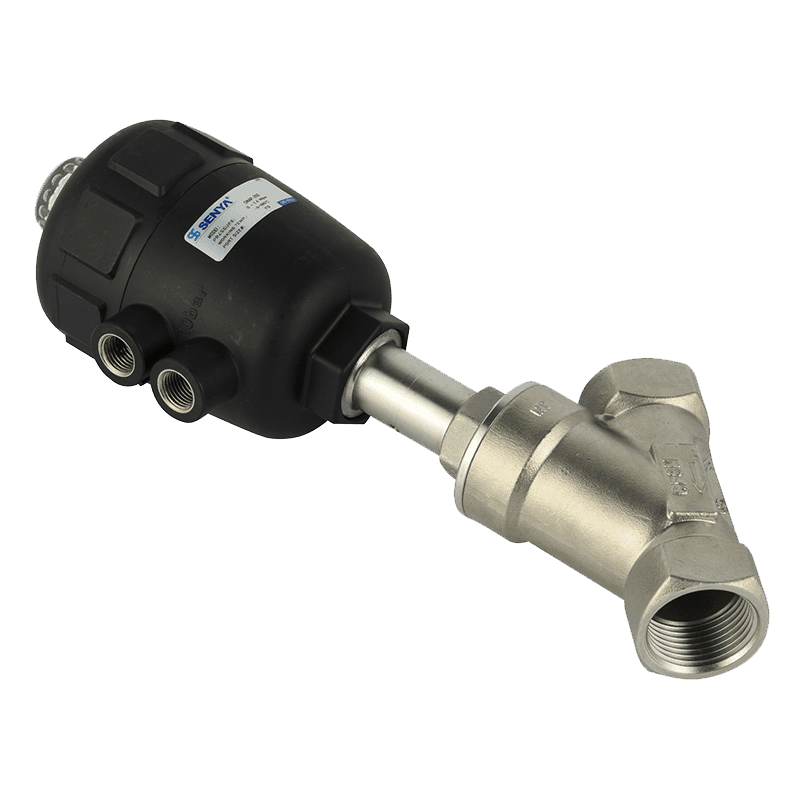

Economical plastic actuator pneumatic angle seat valve
  • Economical plastic actuator pneumatic angle seat valve
  • Economical plastic actuator pneumatic angle seat valve

Economical plastic actuator pneumatic angle seat valve

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • SUS316 valve body to fit food or high cleanliness requirements
  • PTFE seals to fit 180℃ mediuem
  • Double acting/single acting [N.O] / [N.C.] can choose
  • Large flow body structure design
  • Air control operated to fit flammable working environment
  • IP65 valve protection level
  • The structure is simple and easy to maintain
  • working pressure range in 0-1.0 Mpa （0 -145  Psi)
  • Economy plastic actuator or all stainless steel 316 is optional
  • The valve body is designed with a 45° tilt to prevent water hammer effects
PREV：Music fountain submerged water column control valve2/2 ways solenoid valve Brass solenoid valve
NEXT：Full stainless steel long life food grade pneumatic angle seat valve
  • Description

  • Product Description

    Solenoid valve is a significant element in the fluid control system. From householders to aerospace, pharmaceuticals, automobiles industries; from liquid to gas, they are all aspiring durable, reliable, ingenious on solenoid valve. The imported ZAPP valve core is exceptionally excellent to bring the high quality for long term use in the fluid control system. The water solenoid valve base and structure also got an updrade to fulfill large flow, high durable, and millisecond level response. It is present in a variety of industries, and we are determined to provide a better product experience and persist in product innovation.



    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting

    Series

    SNAP

    Body Material

    SUS304 with plastic actuator

    Way to control

    pneumatic control

    Pressure resistance

    0- 1.6 Mpa

    Sealing material

    PTFE

    Temperature

    -5 ~ 180 ℃

    port range

    1/2" ~ 2"

    Normally open normally closed

    Double Acting / N.C.

    Wiring

    None

    Protection level

    IP65

    way to install

    bracket required

    Recommended installation method

    horizontally

    thread option

    BSP, NPT thread
  • Industrial

    Water dispenser

    The water dispenser needs extremely high cleanliness. We have customized exclusive silica gel seals, which can not affect the quality of drinking water for a long time, and can have very stable quality in high temperature environment

    see more Ningbo SENYA Pneumatic Technology Co., Ltd.
  • Industrial

    Robotic control system

    SV series D-sub directional manifold can install to the robotic arm bracket. It can reduce 80% labor cost, enjoying the plug-out and plug-in product experience.

    see more Ningbo SENYA Pneumatic Technology Co., Ltd.
  • Industrial

    Primary air system

    For the outdoor unit of the fresh air system, the volume of the product is required to be more compact. We have customized special socket wiring harness, which can facilitate the customer's wiring and installation

    see more Ningbo SENYA Pneumatic Technology Co., Ltd.
  • Industrial

    Agriculture irrigation system

    pesticide spraying industry---our special seals design in vision. It has good resistance to corrosive pesticides

    see more Ningbo SENYA Pneumatic Technology Co., Ltd.
  • Industrial

    New energy heat management system

    SY22310 series can be well applied to battery thermal management systems, the product has the characteristics of free installation, which is not the advantage of other traditional solenoid valves. High flow, compact design, can be installed in many small Spaces

    see more Ningbo SENYA Pneumatic Technology Co., Ltd.
  • Video Support

    SENYA have a group of engineer to solve your problem for 24 hours. "Solving your problems is what we care about" SENYA will offer video technical support in English to help you solving your product issues remotely.

  • Warranty Service

    Every case comes with one year lifetime guaranty so that if there is ever a problem with your case it will either be repaired and returned or replaced.

  • Online Service

    Experienced employees & experts are always at your service to provide you with satisfactory products & professional instruction on technical problem solutions.

  • Logistics Solutions

    We offer different logistics solutions, and the price advantage of the line.

  • Safe Packaging

    Different packing methods are provided. Wooden case packing can protect the goods from logistics damage

  • Multiple logistics

    We can offer CIF EXW and DDP. UPs, FedEx, TNT and other different logistic options to help customers save money while getting the fastest logistics speed experience.

  • Provide Certificate Of Origin

    For countries with preferential trade, we can also provide certificates of origin to reduce your tariff to zero.

  • Low Cost

    We will go into a lot of detail so that you don't have to draw much energy. Ensure that the goods are delivered to you accurately, quickly and at a low cost.
