Full stainless steel long life food grade pneumatic angle seat valve

Home / Products / 2/2 ways solenoid valve / Full stainless steel long life food grade pneumatic angle seat valve

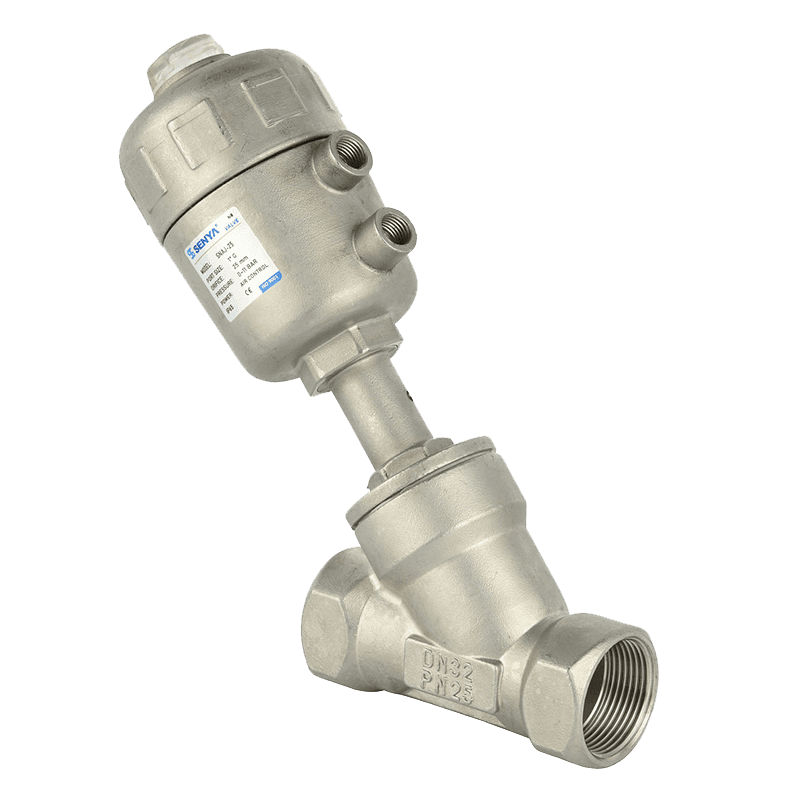

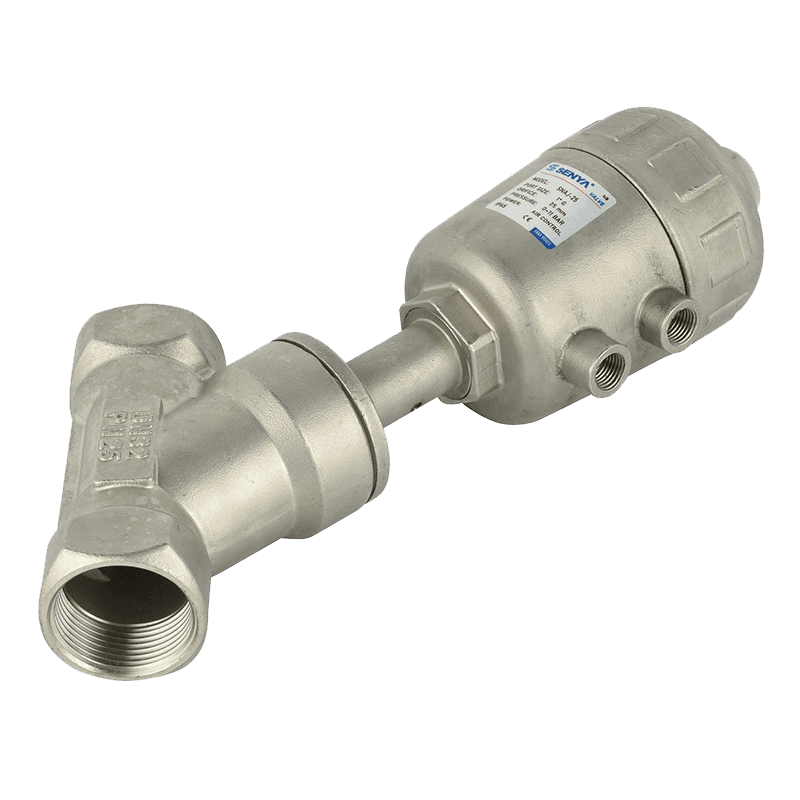

Full stainless steel long life food grade pneumatic angle seat valve
  • Full stainless steel long life food grade pneumatic angle seat valve
  • Full stainless steel long life food grade pneumatic angle seat valve

Full stainless steel long life food grade pneumatic angle seat valve

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • SUS316 valve body to fit food or high cleanliness requirements
  • PTFE seals to fit 180℃ mediuem
  • Double acting/single acting [N.O] / [N.C.] can choose
  • Large flow body structure design
  • Air control operated to fit flammable working environment
  • IP65 valve protection level
  • The structure is simple and easy to maintain
  • working pressure range in 0-1.0 Mpa （0 -145  Psi)
  • Economy plastic actuator or all stainless steel 316 is optional
  • The valve body is designed with a 45° tilt to prevent water hammer effects
PREV：Economical plastic actuator pneumatic angle seat valve
NEXT：A more safe, reliable, clean large flow pneumatic control valve
  • Description

  • Product Description

    Pneumatic valve is a significant element in the fluid control system. From householders to aerospace, pharmaceuticals, automobiles industries; from liquid to gas, they are all aspiring durable, reliable, ingenious on solenoid valve. Pneumatic valves have advantages in safe and reliable concept when compared with solenoid valve. In flammable and explosive working environment, electric force is always not a good choice. And under long-term high temperature environment, heat dissipation from the coils can be a problem, and it will shorten the life-time of the valve. So that pneumatic control valve could be a better option for above industries to bring a more secure and reliable solution.



    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting

    Series

    SNAJ

    Body Material

    SUS304 / optional 316

    Way to control

    pneumatic control

    Pressure resistance

    0- 1.6 Mpa

    Sealing material

    PTFE

    Temperature

    -5 ~ 180 ℃

    port range

    1/2" ~ 2"

    Normally open normally closed

    Double Acting / N.C.

    Wiring

    None

    Protection level

    IP65

    way to install

    bracket required

    Recommended installation method

    horizontally

    thread option

    BSP, NPT thread
