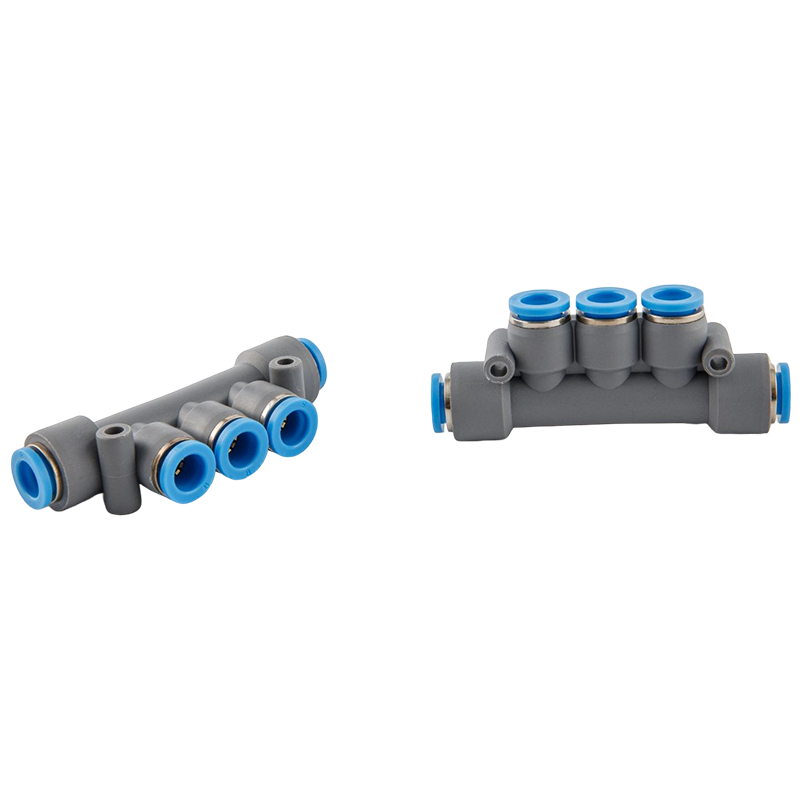

Triple universal tee pneumatic push-in fitting (five ways)

+86 0574 88951829 Contact Us Download Pdf

Product Description

The spring design can accept multiple quick insertion and removal
High hardness plastics can be used for a long time without embrittlement
Copper parts are plated with chromium to prevent rust and oxidation
Comes with threaded sealant for quick installation
The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
working pressure range in 0-1.0 Mpa （0 - 145 Psi)

PREV：Male run tee type pneumatic push-in fitting（three ways)
NEXT：Male branch tee pneumatic push-in fitting (three ways)

Description

Product Description

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.

Product Parameters

MODEL D B d F E X

GPK04 4 57 3.2 36 19 9.9

GPK06 6 61 3.2 42 20.3 11.9

GPK08 8 81.6 3.2 48 24.3 13.9

GPK10 10 92.7 4.2 60.2 28.2 16.9

GPK12 12 100.5 4.2 68.5 30 19.9
