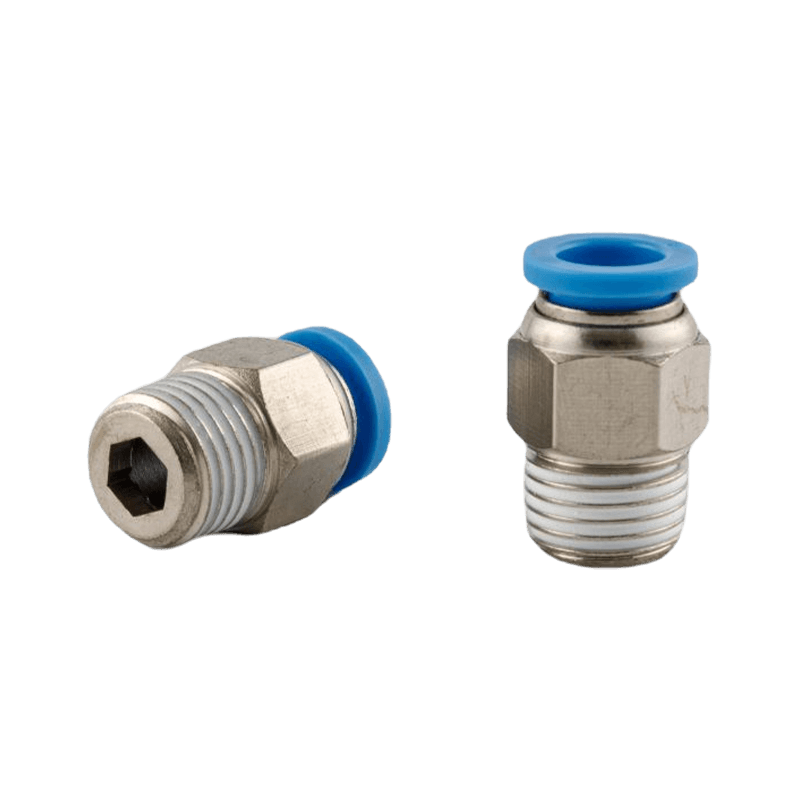

Striaght Hexagon Socket Head Male Connector type pneumatic push-in fitting（two ways)

Home / Products / Pneumatic push-in fitting / Striaght Hexagon Socket Head Male Connector type pneumatic push-in fitting（two ways)
Striaght Hexagon Socket Head Male Connector type pneumatic push-in fitting（two ways)
  • Striaght Hexagon Socket Head Male Connector type pneumatic push-in fitting（two ways)

Striaght Hexagon Socket Head Male Connector type pneumatic push-in fitting（two ways)

+86 0574 88951829 Contact Us Download Pdf
Product Description
  • The spring design can accept multiple quick insertion and removal
  • High hardness plastics can be used for a long time without embrittlement
  • Copper parts are plated with chromium to prevent rust and oxidation
  • Comes with threaded sealant for quick installation
  • The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
  • working pressure range in 0-1.0 Mpa （0 - 145 Psi)
PREV：Branch Y type pneumatic push-in fitting（three ways)
NEXT：No next article
  • Description

  • Product Description

    The PC series straight-through pneumatic quick-connect coupling is a commonly used model, capable of directly connecting threads and pneumatic hoses. Typically designed for hose sizes ranging from 4 to 14mm, with thread options including M5 to 1/2" PT, G, and NPT.

    Designed to meet your specific needs, this fitting accommodates hose sizes ranging from 4 to 14mm, making it incredibly versatile for various pneumatic systems. Additionally, it offers a variety of thread options including M5, 1/8" PT, 1/4" PT, 3/8" PT, 1/2" PT, G, and NPT, ensuring compatibility with your existing equipment and setups.

    Our Straight Hexagon Socket Head Male Connector Type Pneumatic Push-In Fitting is engineered for efficiency and ease of use. Its quick-connect design allows for swift and secure connections, minimizing downtime and improving productivity. Whether you're working with compressed air systems, fluid conveyance, or any pneumatic application, this fitting is designed to perform reliably, every time.

    Key Features:

    Versatile compatibility with hose sizes from 4mm to 14mm.

    Wide range of thread options: M5, 1/8" PT, 1/4" PT, 3/8" PT, 1/2" PT, G, and NPT.

    Quick and secure connections for efficient operations.

    Durable construction ensures long-lasting performance.

    Suitable for various pneumatic applications.




    Product Parameters

    MODEL D R A B S1 S2 X
    GPC04-M5 4 M5 4 22.1 10 2 9.9
    GPC04-M6 4 M6 4.5 22.5 10 2 9.9
    GPC04-01 4 PT1/8 7.5 20.3 10 3 9.9
    GPC04-02 4 PT1/4 9.5 19 14 3 9.9
    GPC06-M5 6 M5 4 22.3 12 2 11.9
    GPC06-M6 6 M6 4.5 23 12 2 11.9
    GPC06-01 6 PT1/8 7.5 20.8 12 4 11.9
    GPC06-02 6 PT1/4 9.5 23.8 14 4 11.9
    GPC06-03 6 PT3/8 10.5 24.2 17 4 11.9
    GPC06-04 6 PT1/2 13.5 26.6 21 4 11.9
    GPC08-01 8 PT1/8 7.5 26.5 14 5 13.9
    GPC08-02 8 PT1/4 9.5 24.7 14 6 13.9
    GPC08-03 8 P3/8 10.5 22 17 6 13.9
    GPC08-04 8 PT1/2 13.5 25.3 21 6 13.9
    GPC10-01 10 PT1/8 7.5 30 17 5 16.9
    GPC10-02 10 PT1/4 9.5 31.3 17 6 16.9
    GPC10-03 10 PT3/8 10.5 28.5 17 8 16.9
    GpC10-04 10 PT1/2 13.5 25.9 21 8 16.9
    GPC12-01 12 PT1/8 7.5 32.1 20 5 19.9
    GPC12-02 12 PT1/4 9.5 34 20 6 19.9
    PC12-03 12 PT3/8 10.5 30.2 20 8 19.9
    GPC12-04 12 P1/2 13.5 32.2 21 8 19.9
    GPC14-02 14 PT1/4 7.5 36 22 8 21.8
    GPC14-03 14 PT3/8 10.5 35 22 8 21.8
    GPC14-04 14 PT1/2 13.5 33 22 10 21.8
    GPC16-03 16 PT3/8 10.5 37.1 24 8 23.8
    GPC16-04 16 PT1/2 13.5 34.6 24 10 23.8
