Hexagon Female Elbow pneumatic push-in fitting (two ways)

Home / Products / Pneumatic push-in fitting / Hexagon Female Elbow pneumatic push-in fitting (two ways)
Hexagon Female Elbow pneumatic push-in fitting (two ways)
  • Hexagon Female Elbow pneumatic push-in fitting (two ways)

Hexagon Female Elbow pneumatic push-in fitting (two ways)

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • The spring design can accept multiple quick insertion and removal
  • High hardness plastics can be used for a long time without embrittlement
  • Copper parts are plated with chromium to prevent rust and oxidation
  • Comes with threaded sealant for quick installation
  • The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
  • working pressure range in 0-1.0 Mpa （0 - 145 Psi)
PREV：Union Elbow pneumatic push-in fitting (three ways)
NEXT：Elbow Extend pneumatic push-in fitting (two ways)
  • Description

  • Product Description

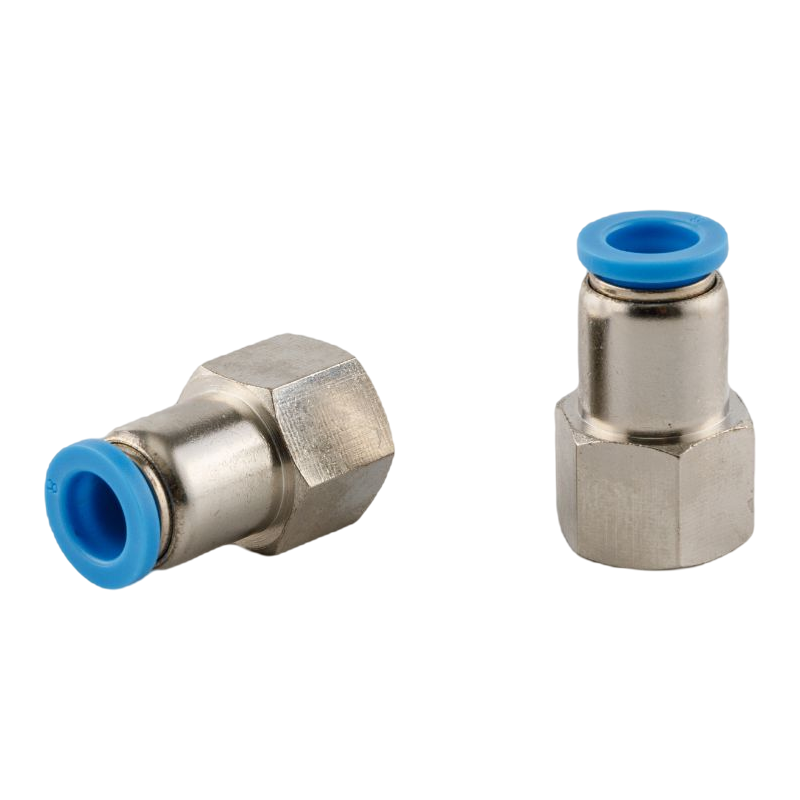

    The PCF series straight hexagon socket head female Connector type pneumatic is a commonly used model, capable of directly connecting threads and pneumatic hoses. Typically designed for hose sizes ranging from 4 to 14mm, with thread options including M5 to 1/2" PT, G, and NPT.

    The PCF series is your go-to choice when it comes to pneumatic fittings, and the Straight Hexagon Socket Head Female Connector Type is a versatile and widely used model in this range. This fitting is designed to simplify your pneumatic connections, making them efficient and reliable.

    One of the key features of the PCF series is its ability to directly connect threads and pneumatic hoses, eliminating the need for complex adapters or additional components. This saves you time and effort, ensuring a hassle-free installation process.

    Our Straight Hexagon Socket Head Female Connector Type Pneumatic Push-In Fitting is designed to accommodate a wide range of hose sizes, ranging from 4mm to 14mm. This versatility ensures that you can use it in various applications, providing a consistent and secure connection regardless of your hose size.

    In addition, the PCF series offers a variety of thread options, including M5, 1/8" PT, 1/4" PT, 3/8" PT, 1/2" PT, G, and NPT. This extensive selection allows you to seamlessly integrate this fitting into your existing pneumatic systems, regardless of the threading standards you use.




    Product Parameters

    MODEL D R A B s x
    GPCF5/32-01N 5/32 NPT1/8 8 24.8 12 9.9
    GPCF5/32-02N 5/32 NPT1/4 11 27.8 17 9.9
    GPCF1/4-01N 1/4 NPT1/8 8 25 12 11.9
    GPCF1/4-02N 1/4 NPT1/4 11 28 17 11.9
    GPCF1/4-03N 1/4 NPT3/8 12 29 20 11.9
    GPCF1/4-04N 1/4 NPT1/2 14 31 24 11.9
    GPCF5/16-01N 5/16 NPT1/8 8 27.1 14 13.9
    GPCF5/16-02N 5/16 NPT1/4 11 30 17 13.9
    GPCF5/16-03N 5/16 NPT3/8 12 31 20 13.9
    GPCF5/16-04N 5/16 NPT1/2 14 33.1 24 13.9
    GPCF3/8-01N 3/8 NPT1/8 8 30.3 17 16.9
    GPCF3/8-02N 3/8 NPT1/4 11 33.3 17 16.9
    GPCF3/8-03N 3/8 NPT3/8 12 34.3 20 16.9
    GPCF3/8-04N 3/8 NPT1/2 14 36.3 24 16.9
    GPCF1/2-01N 1/2 NPT1/8 8 31.5 20 19.9
    GPCF1/2-02N 1/2 NPT1/4 11 34.5 20 19.9
    GPCF1/2-03N 1/2 NPT3/8 12 35.5 20 19.9
    GPCF1/2-04N 1/2 NPT1/2 14 37.5 24 19.9
