Extended Male Elbow pneumatic push-in fitting (two ways)

+86 0574 88951829

Download Pdf

Product Description

The spring design can accept multiple quick insertion and removal
High hardness plastics can be used for a long time without embrittlement
Copper parts are plated with chromium to prevent rust and oxidation
Comes with threaded sealant for quick installation
The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
working pressure range in 0-1.0 Mpa （0 - 145 Psi)

Product Description

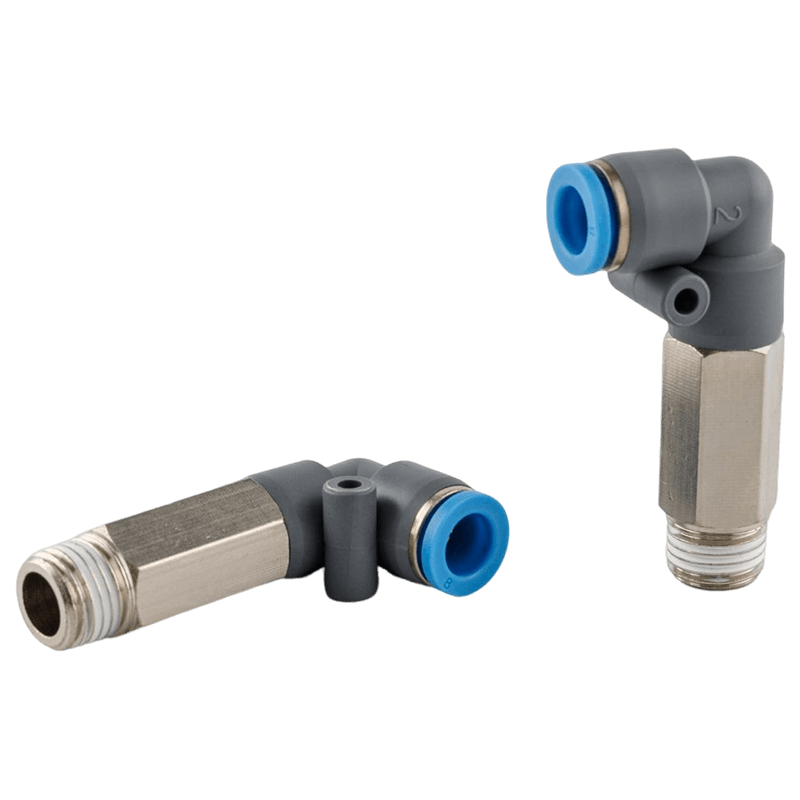

Extension hexagon socket head below male Connector type pneumatic push-in fitting. The extension type right-angle plastic joint can help to use in the narrow space, and extend the air height, The hex nut can also be convenient and quick to install.

Extension Hexagon Socket Head Elbow Male Connector, a versatile pneumatic push-in fitting designed for precision and convenience in compressed air systems. This two-way connector is engineered to optimize airflow in tight and confined spaces, making it an essential component for your pneumatic applications.

The Extension Hexagon Socket Head Elbow Male Connector is an innovative solution for those challenging situations where space is limited. Its unique right-angle design allows you to navigate narrow spaces effortlessly while ensuring a secure and efficient connection. This feature is particularly beneficial when you need to extend the air height within your system, enhancing its overall performance.

One of the standout features of this connector is the hex nut, which simplifies and accelerates installation. The hexagon shape provides a firm grip, allowing for quick and easy tightening without the need for specialized tools. This user-friendly design saves you time and effort during assembly, ensuring a reliable connection every time.

Product Parameters

MODEL	D	R	A	B	C	S	X
GPLL5/32-01N	5/32	NPT1/8	7.5	36	18.2	7/16	9.9
GPLL5/32-02N	5/32	NPT1/4	9.5	38	18.2	9/16	9.9
GPLL1/4-01N	1/4	NPT1/8	7.5	39.6	19	1/2	11.9
GPLL1/4-02N	1/4	NPT1/4	9.5	41.5	19	9/16	11.9
GPLL1/4-03N	1/4	NPT3/8	10.5	43.6	19	11/16	11.9
GPLL1/4-04N	1/4	NPT1/2	13.5	46.5	19	7/8	11.9
GPLL5/16-01N	5/16	NPT1/8	7.5	43	23	9/16	13.9
GPLL5/16-02N	5/16	NPT1/4	9.5	45	23	9/16	13.9
GPLL5/16-03N	5/16	NPT3/8	10.5	47	23	11/16	13.9
GPLL5/16-04N	5/16	NPT1/2	13.5	50	23	7/8	13.9
GPLL3/8-01N	3/8	NPT1/8	7.5	48.7	27.4	11/16	16.9
GPLL3/8-02N	3/8	NPT1/4	9.5	50.7	27.4	11/16	16.9
GPLL3/8-03N	3/8	NPT3/8	10.5	51.7	27.4	11/16	16.9
GPLL3/8-04N	3/8	NPT1/2	13.5	54.7	27.4	7/8	16.9
GPCF1/2-02N	1/2	NPT1/4	9.5	58.3	29.3	7/8	19.9
GPCF1/2-03N	1/2	NPT3/8	10.5	59.3	29.3	7/8	19.9
GPCF1/2-04N	1/2	NPT1/2	13.5	62.3	29.3	7/8	19.9
