Brass Solenoid Valve: 2W040-10-D2-D

Home / Products / 2/2 ways solenoid valve / Brass Solenoid Valve: 2W040-10-D2-D

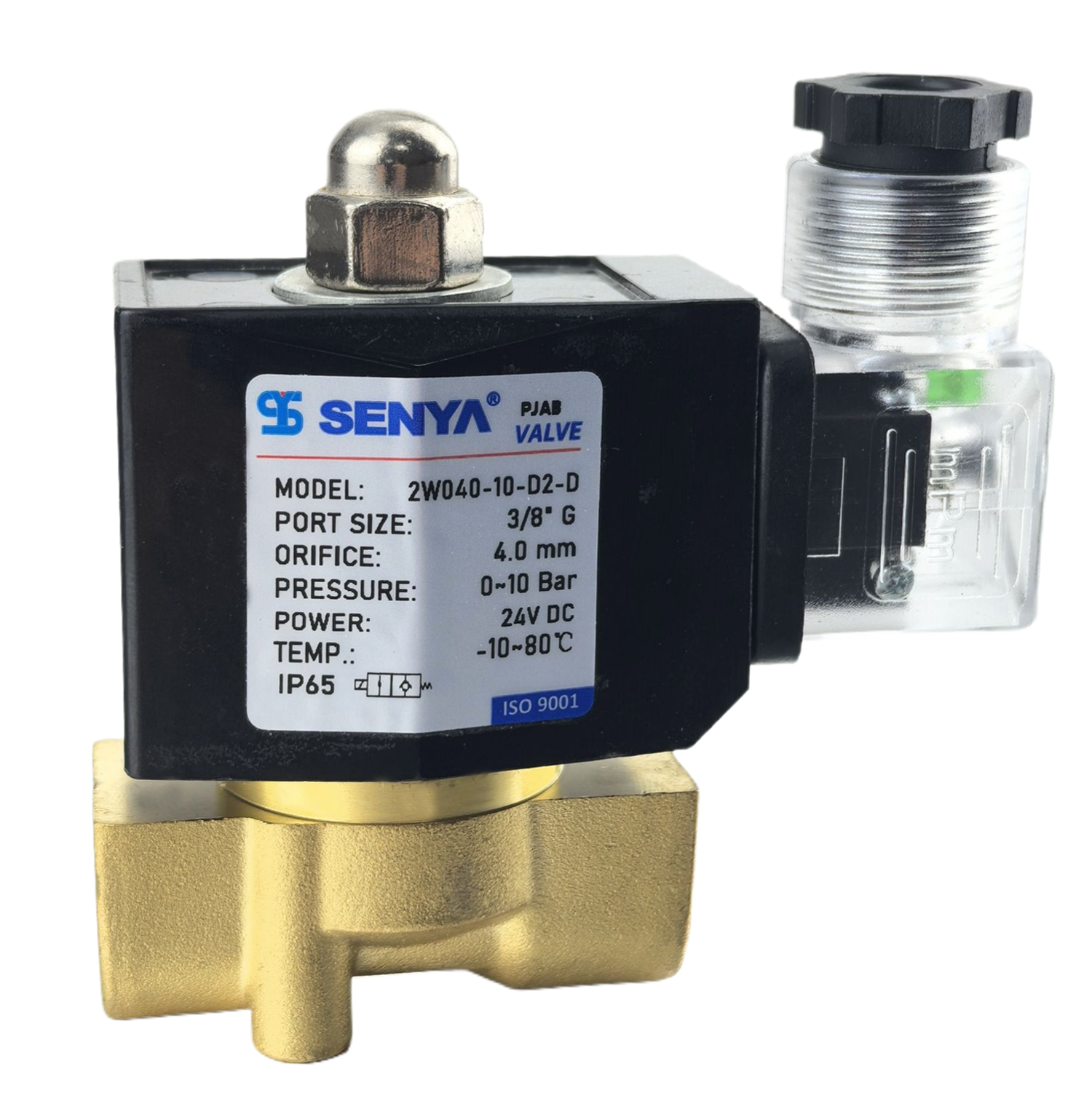

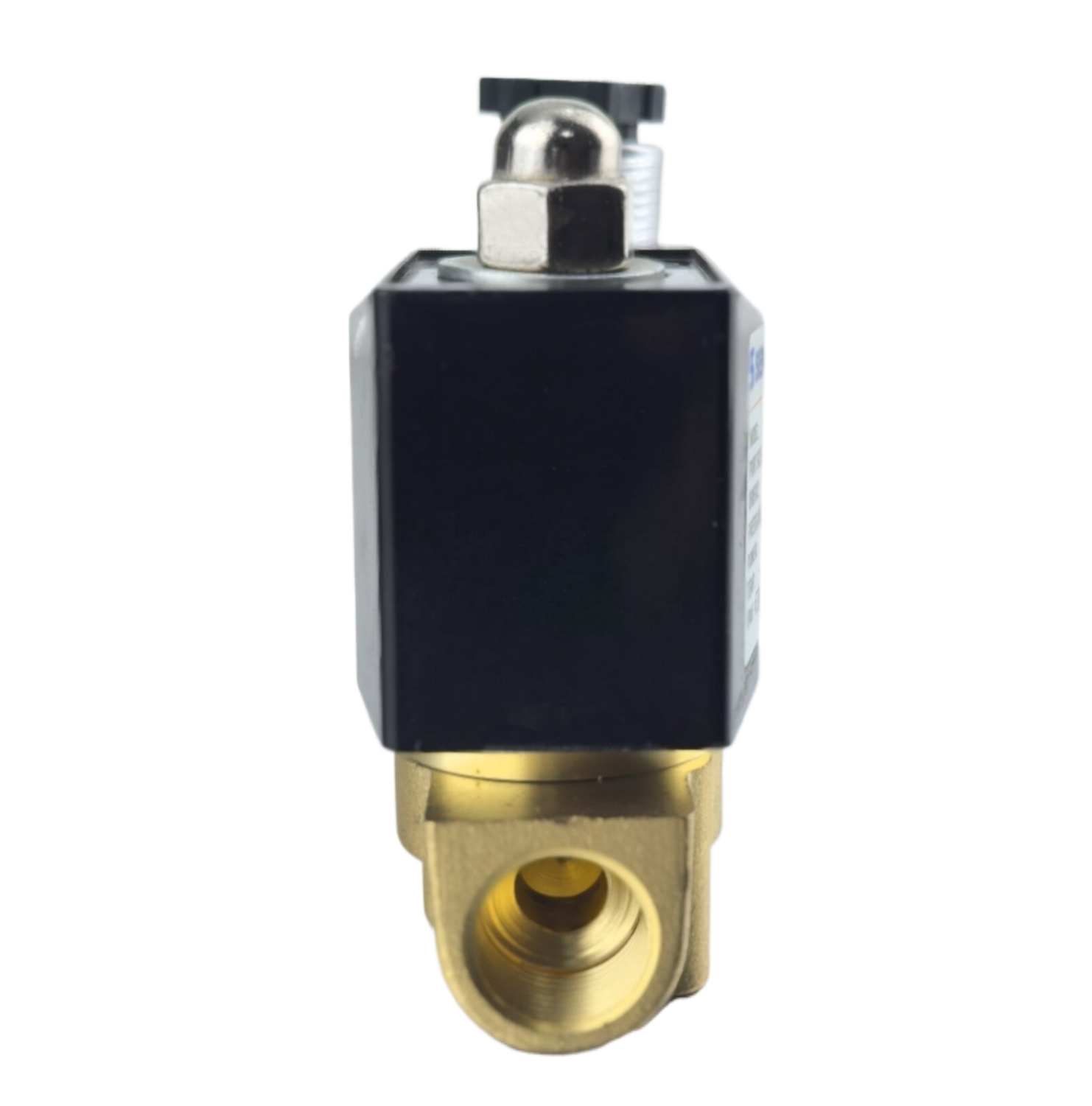

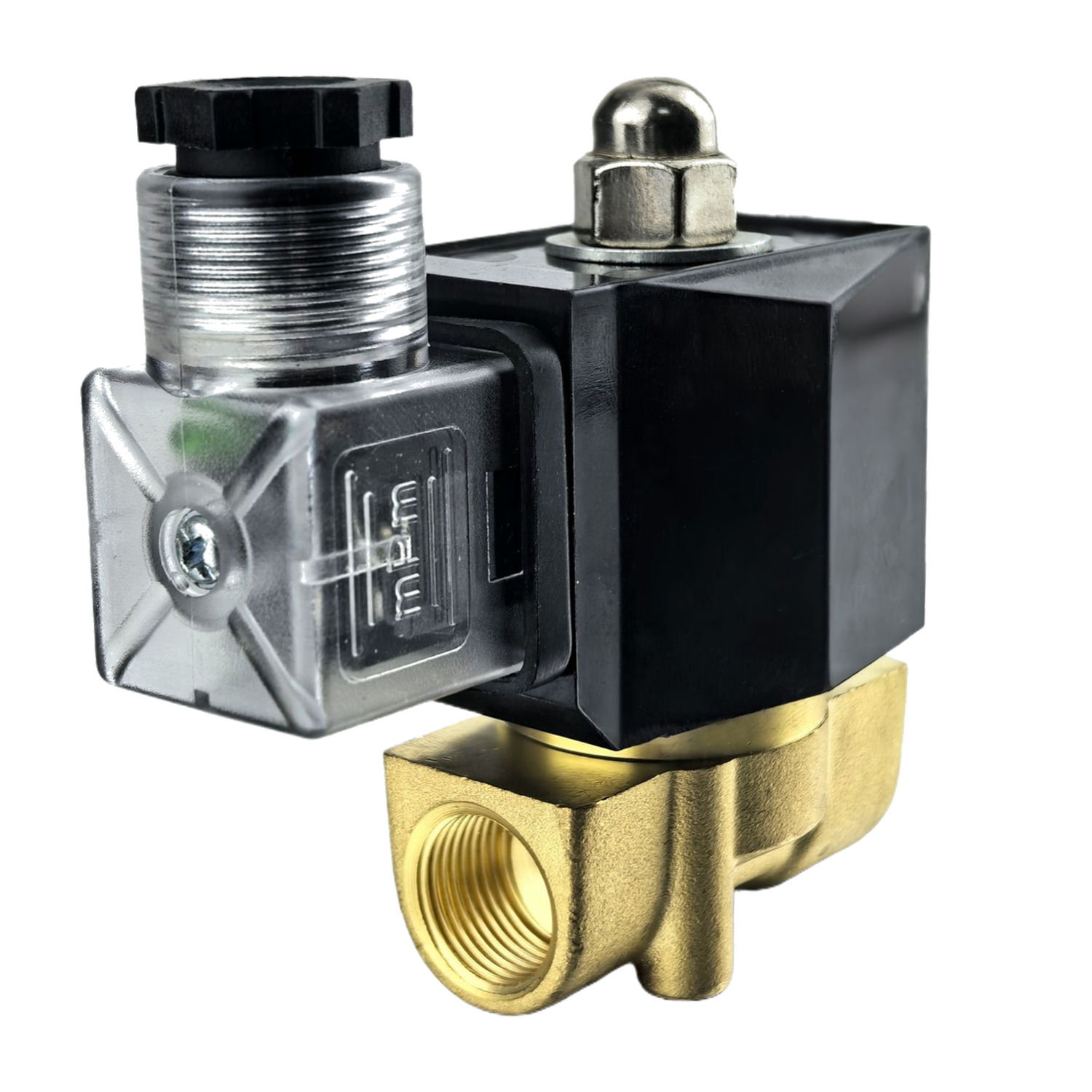

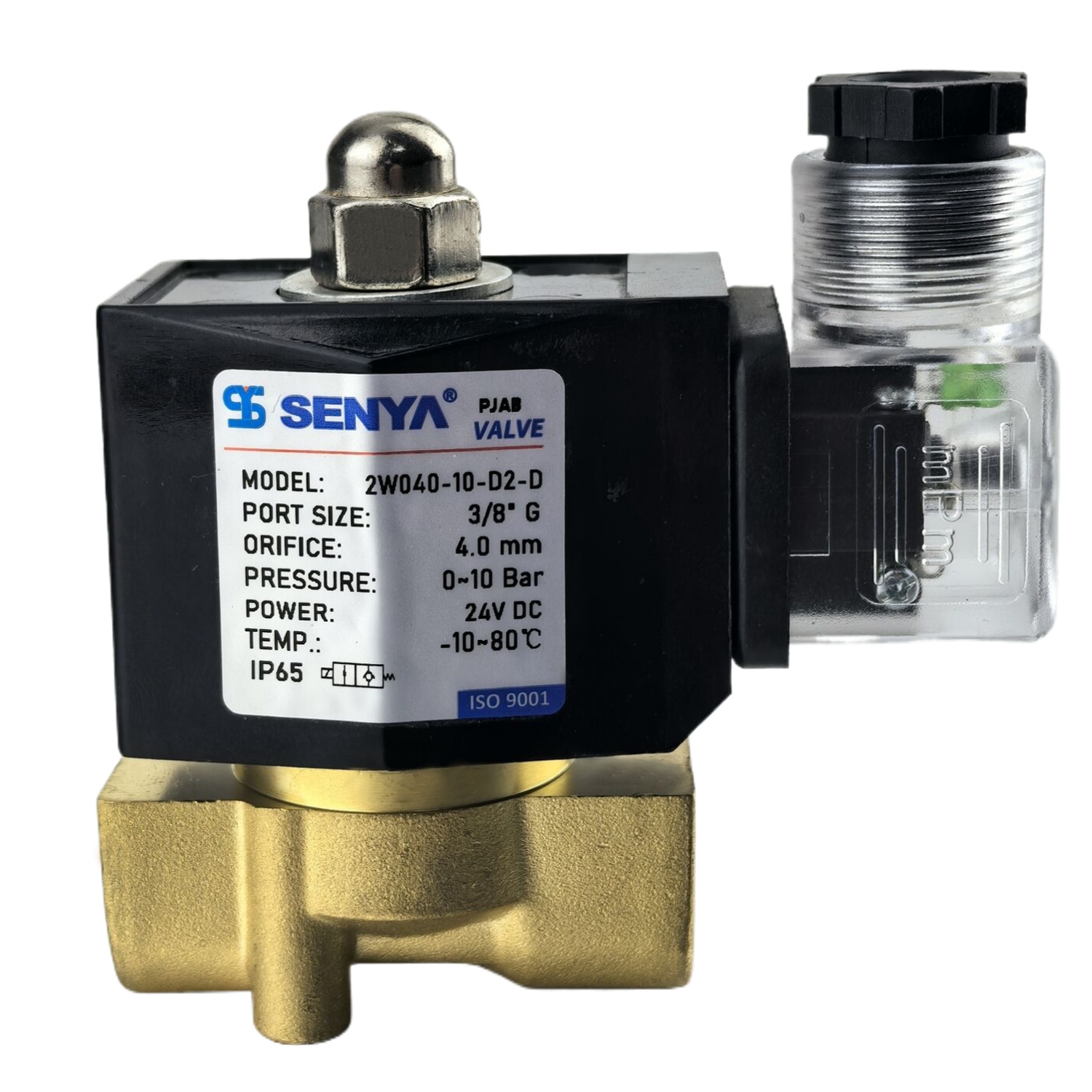

Brass Solenoid Valve: 2W040-10-D2-D
  • Brass Solenoid Valve: 2W040-10-D2-D
  • Brass Solenoid Valve: 2W040-10-D2-D
  • Brass Solenoid Valve: 2W040-10-D2-D
  • Brass Solenoid Valve: 2W040-10-D2-D

Brass Solenoid Valve: 2W040-10-D2-D

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • Model: 2W040-10-D2-D
  • Zero differential pressure start 0 ~ 10 bar (0 - 145 Psi)
  • millisecond switch response (within 20-25 ms）
  • Large flow orifice size: 4.0 mm
  • Protection Level: IP65
  • Coil ED: 100%
  • Personalized customization seals to meet different media applications
PREV：No previous article
NEXT：Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Description

  • Product Description

    2W series is a 2/2-way brass water direct acting/semi-direct acting solenoid valve. There are different power coils you can choose from, which have excellent power thermal attenuation capability. The product can be equipped with energy-saving modules to meet the requirements of low power consumption such as mobile cleaning equipment, and the minimum power can reach 3 watts. The valve has a large flow structure design and can withstand large particle impurities which will not affect the action of the valve body action, to ensure excellent product performance. For installation methods, SENYA can provide mounting brackets of different materials to meet the installation requirements of various products. Optional waterproof junction box to ensure product use in a water vapor environment. In addition, an IP68 waterproof coil can be installed, which can be used to immerse the valve body in water, such as fountain equipment.




    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting

    Series

    2W

    Body Material

    Brass

    Way to control

    solenoid valve

    Pressure resistance

    0-1.0 Mpa

    Sealing material

    NBR,VITON,EPDM,SILICON

    Temperature

    -5 ~ 80 ℃ (120℃ optional)

    port range

    1/8"  ~  2"

    Normally open normally closed

    N.C.

    Wiring

    Flying leads/DIN connector/Water-proof coil

    Protection level

    IP43/IP67/IP68

    way to install

    bracket required

    Recommended installation method

    horizontally

    thread option

    BSP, NPT thread
  • Industrial

    Water dispenser

    The water dispenser needs extremely high cleanliness. We have customized exclusive silica gel seals, which can not affect the quality of drinking water for a long time, and can have very stable quality in high temperature environment
