Submersible type long life withstand harsh working environment pulse valve

Home / Products / 2/2 ways solenoid valve / Submersible type long life withstand harsh working environment pulse valve

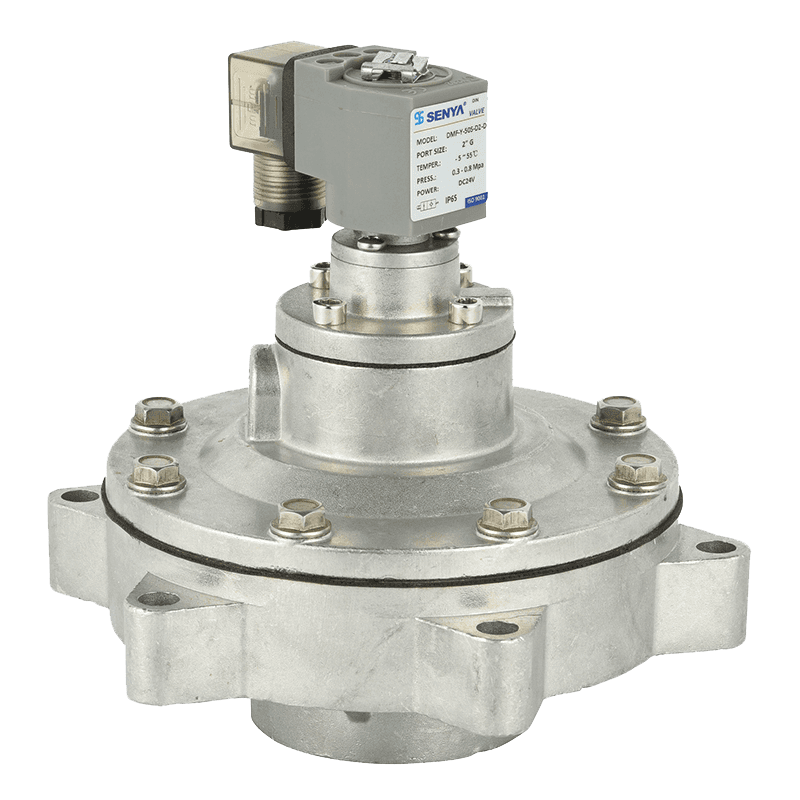

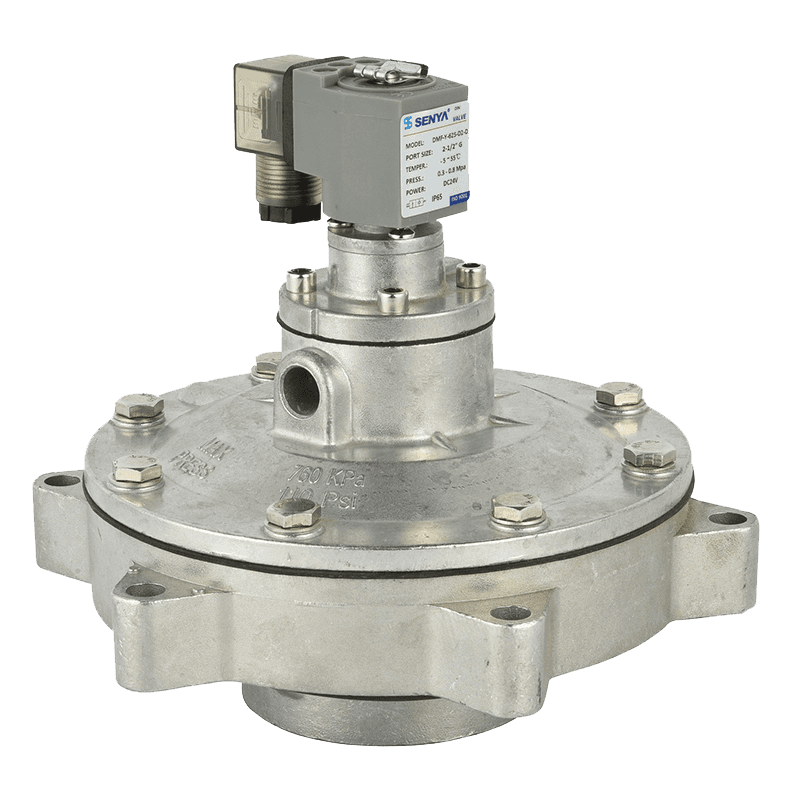

Submersible type long life withstand harsh working environment pulse valve
  • Submersible type long life withstand harsh working environment pulse valve
  • Submersible type long life withstand harsh working environment pulse valve

Submersible type long life withstand harsh working environment pulse valve

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • Cast aluminium has nice capacity for resistance to corrosion
  • easy for repairing
  • suitable for out-door using
  • Larger flow capacity to pump more air flow in a set period, dust removal effect
  • Carbon steel coil clamp spring, not easy to rust
  • Quick plug type, quick installation type can be selected
  • working pressure range in 0.3-0.8 Mpa （44 -116 Psi)
PREV：Right-angle reliable and impurity-resistant dust removal pulse solenoid valve
NEXT：Reliable performance in high pressure and pressure fluid solutions 5404
  • Description

  • Product Description

    DMF-Y series submerged pulse solenoid valve, IP65 protection class can resist impurities intrusion. 0.15 second pulse width, can meet the application of all kinds of dust removal tower. Solenoid valves have high air flow characteristics to cover a larger dust removal area. The highly rigid spring can withstand a rebound of 5 million times. The spring clamping installation of the top coil can meet the free rotation of the coil, convenient installation on site. Carbon steel clips are not easy to rust in harsh environments, which are convenient for later maintenance.



    Product Parameters

    Category

    2/2 ways

    Way of action

    pilot operated

    Series

    DMF-Y

    Body Material

    Cast aluminium

    Way to control

    solenoid valve

    Pressure resistance

    0.3- 0.8 Mpa

    Sealing material

    NBR

    Temperature

    -5 ~ 55 ℃ （-40 ~80℃）

    port range

    3/4"  ~  3"

    Normally open normally closed

    N.C.

    Wiring

    DIN connector

    Protection level

    IP65

    way to install

    bracket required

    Recommended installation method

    horizontally

    thread option

    BSP, NPT thread
