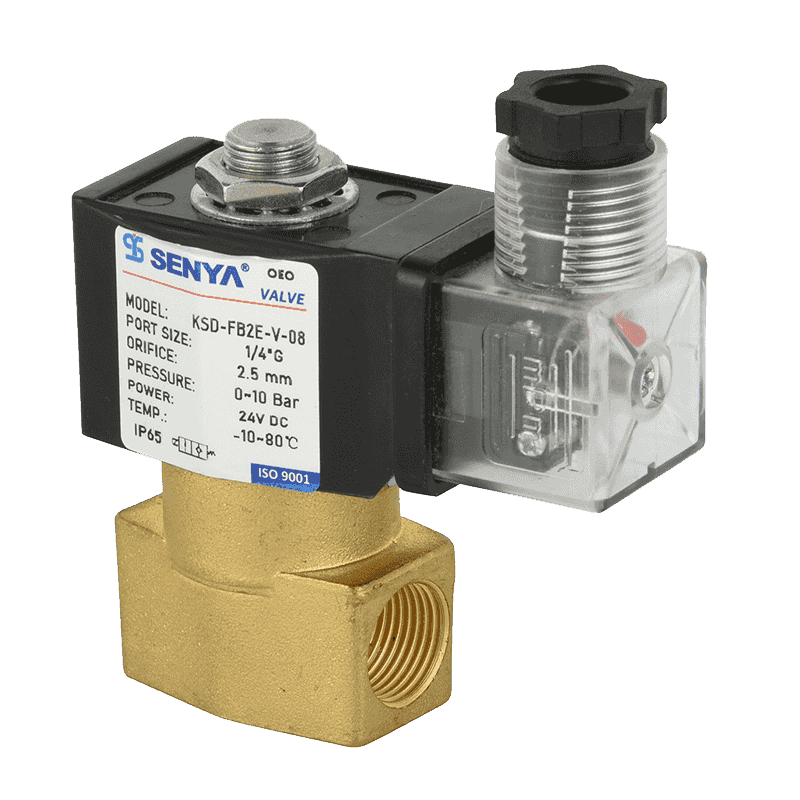

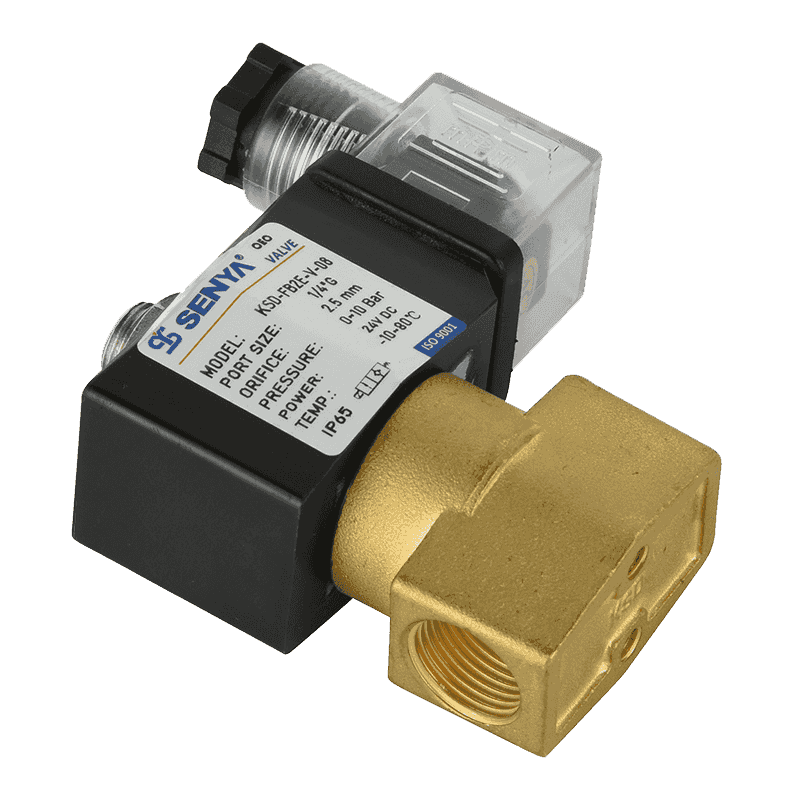

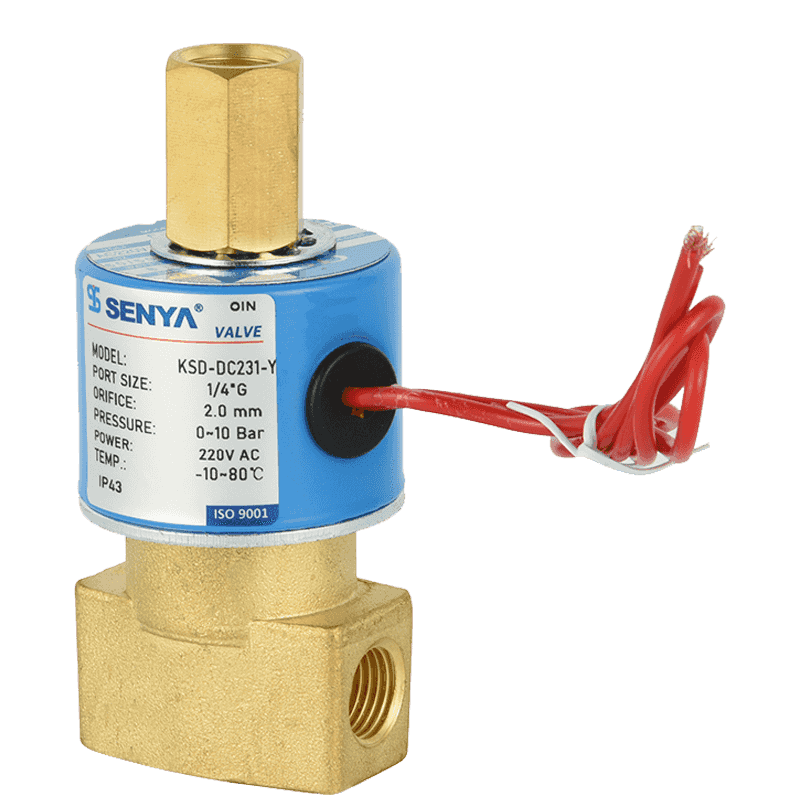

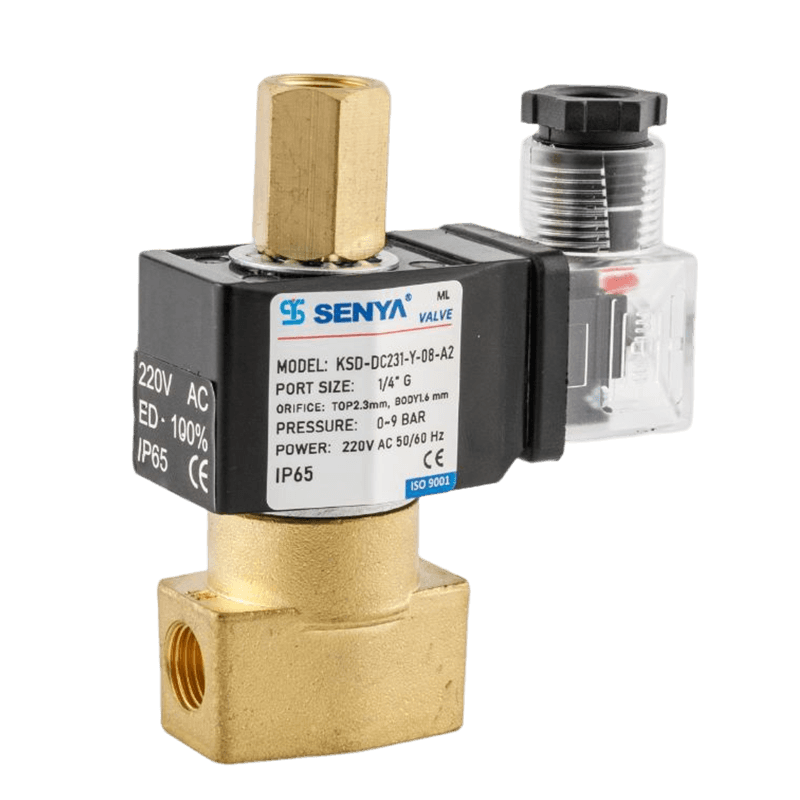

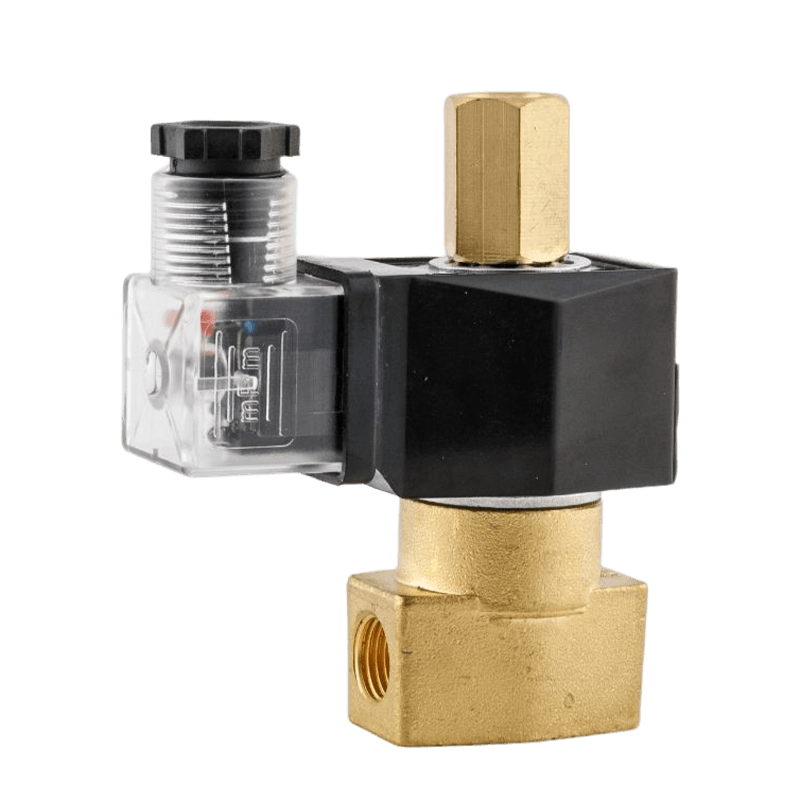

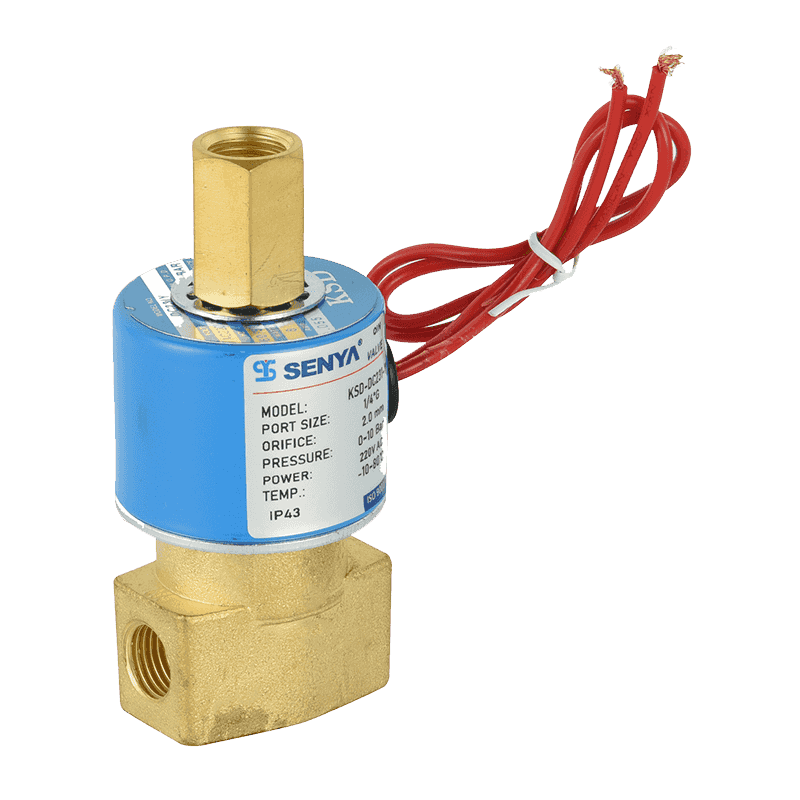

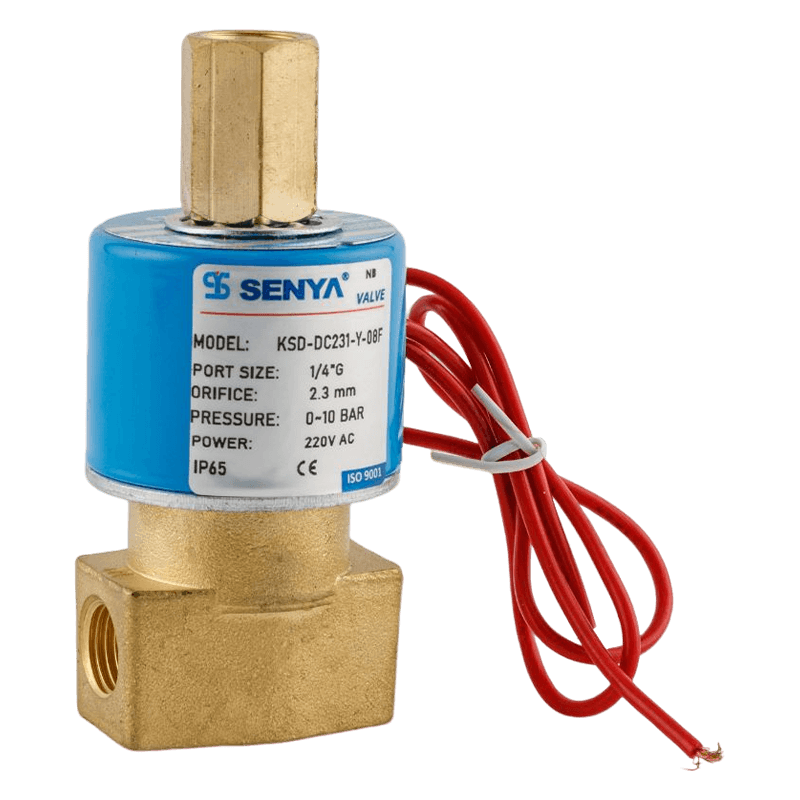

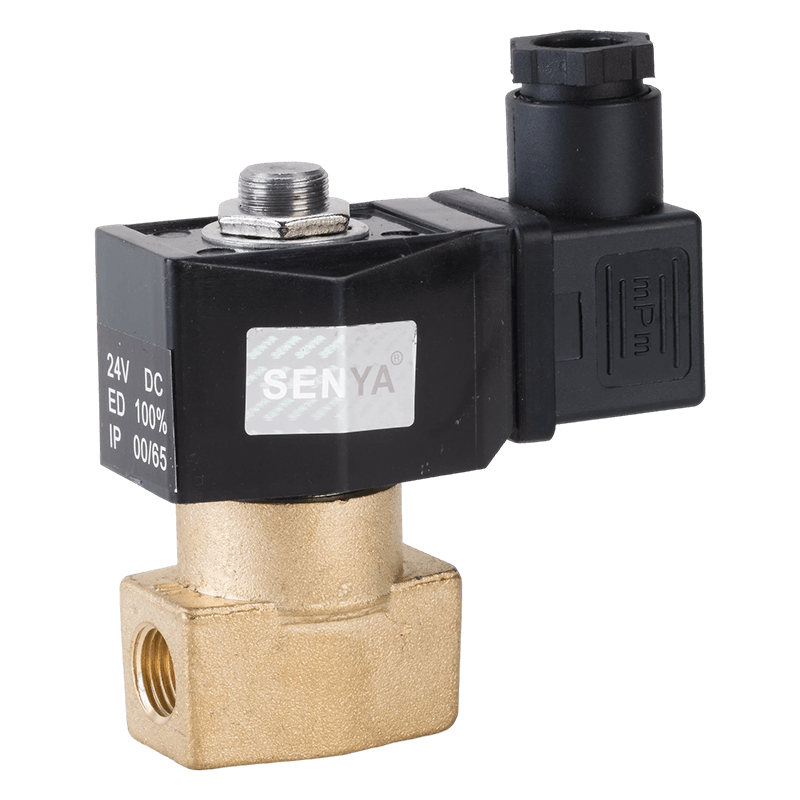

3/2 ways brass solenoid valve to change the direction of fluid KSD
  • 3/2 ways brass solenoid valve to change the direction of fluid KSD
  • 3/2 ways brass solenoid valve to change the direction of fluid KSD
  • 3/2 ways brass solenoid valve to change the direction of fluid KSD
  • 3/2 ways brass solenoid valve to change the direction of fluid KSD

3/2 ways brass solenoid valve to change the direction of fluid KSD

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • Through-hole solenoid valve pilot, meet the top interface design

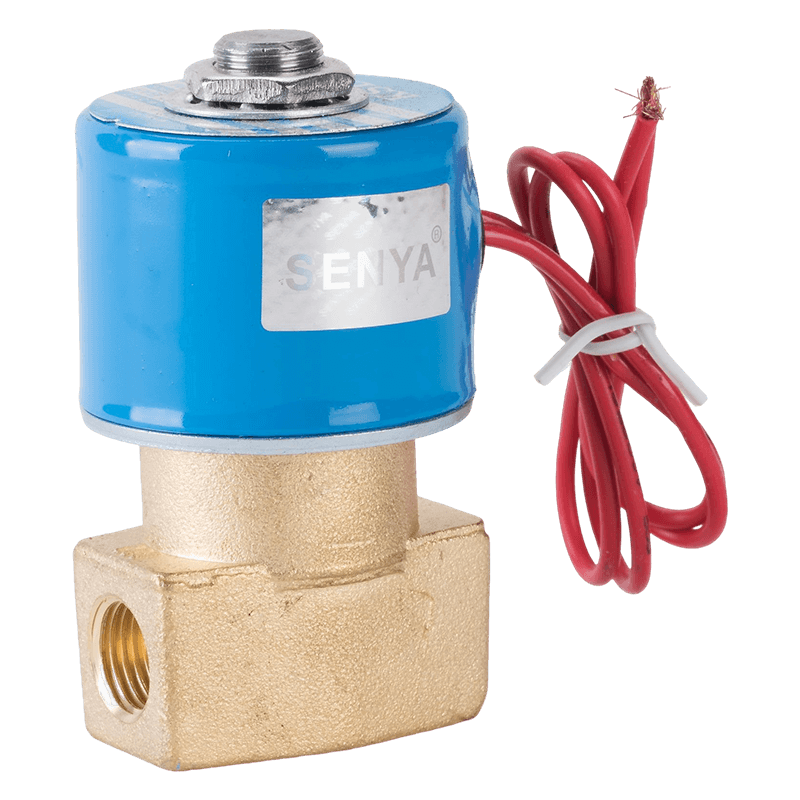

  • 3/2 ways or 2/2 ways optional
  • compact size and easy mounting at bottom

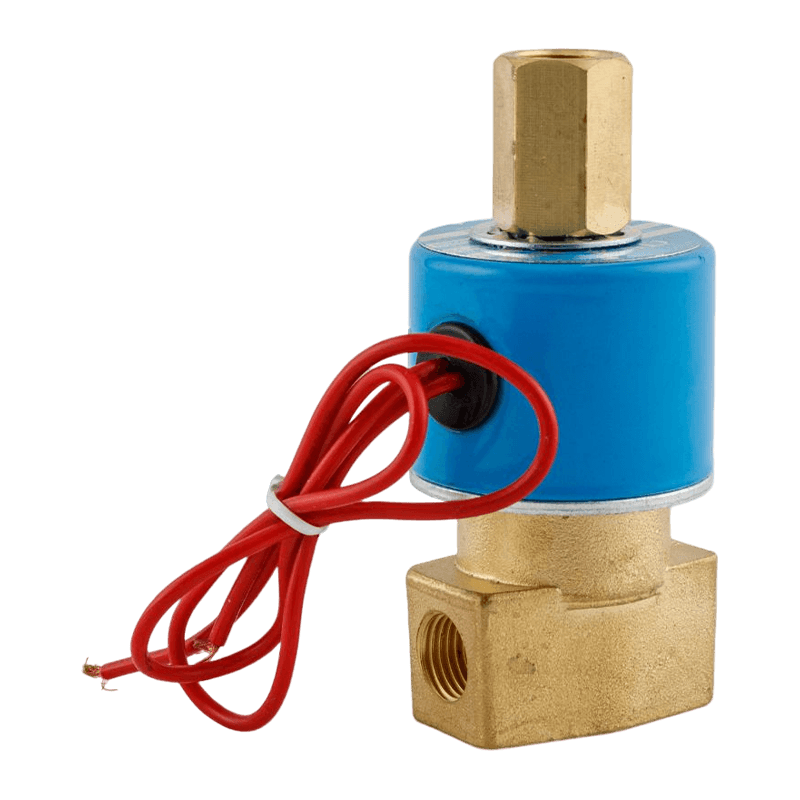

  • 3/2 ways has top port for fluid direction changing
  • a variable seals is optional
  • Suitable for automobile and other production lines
  • working pressure in 0 - 1.0 Mpa  (0 - 145 Psi)
PREV：High power direct acting two position two way solenoid valve is designed for conventional applications PU220
NEXT：Right-angle reliable and impurity-resistant dust removal pulse solenoid valve
  • Description

  • Product Description

    KSD Series 3/2 or 2/2 ways a solenoid valve. This product is suitable for small diameter fluid reversing or control action. The bottom mounting hole is easy to install on various planes and is suitable for use in the automotive industry where installation space is limited. For the 3/2 ways solenoid valve, the first top is provided at the top of the product with thread. It is easy to connect and reverse flow more convenient. The product protection level can reach IP65. The compact valve body is 30% less than the traditional solenoid valve, and the power is 20% less. The pilot material imported from Germany can meet the long-term suction scene and reduce the magnetic suction phenomenon. Meet more responsive speed required.




    Product Parameters

    Category

    2/2 ways | 3/2 ways

    Way of action

    direct acting

    Series

    KSD

    Body Material

    Brass

    Way to control

    solenoid valve

    Pressure resistance

    0 - 1.0 Mpa

    Sealing material

    NBR, EPDM, VITON

    Temperature

    -5 ~ 80 ℃ （-5 ~120℃）

    port range

    1/8"  ~  3/8"

    Normally open normally closed

    N.C. / 3/2 ways

    Wiring

    Flying leads / DIN connector

    Protection level

    IP43/ IP65 / IP67

    way to install

    bottom mounting

    Recommended installation method

    horizontally or vertically

    thread option

    BSP, NPT thread
